SIP電話和門對講配置及應用

簡介

總覽

門口對講系統是一套雙向通訊設備,使用者可透過內建攝影機控制門鎖上鎖/解鎖,並監控周遭環境。系統分為室內對講機與戶外門口機兩大部分。

對講機系列做為戶外機使用,電話機系列則做為室內機。兩者皆支援 IP/SIP 影音通話,搭配實現門控與監控功能。在同一區域網路內,裝置可透過 IP 或 SIP 實現一對多、多對多互通。

本文件以 Bi31s(對講機系列)BF600S(Android 室內電話) 做為範例說明。

適用機型

本文件適用於室內 IP 電話系列與門口對講機系列。

適用對象

本手冊供需要瞭解 SIP 電話搭配門口對講機系統之基礎設定與操作應用的使用者參考。

名詞解釋

SIP:透過註冊帳號進行即時通訊的通訊協定伺服器。
DTMF:用於發送指令代碼、控制遠端設備的信號格式。
音訊編碼:確保語音傳輸穩定的音訊壓縮格式。
影像編碼:確保影像正常傳輸的影片壓縮格式。

設定說明

室內電話基礎設定(BF600S)

BF600S 為搭載 Android 系統的影像電話,介面清晰、操作簡易。可註冊至同一台 SIP 伺服器與門口機通訊;即使無 SIP 伺服器,也能在區域網路內透過 IP 進行點對點影音通話。

請正確設定下列項目,以啟用通訊與門控功能:

設定項目狀態說明
SIP 註冊已註冊與門口機註冊至同一 SIP 伺服器
DTMFInband無法解鎖門鎖(繼電器控制無效)
RFC2833支援門鎖解鎖
Info支援門鎖解鎖
Auto與對端裝置自動協商 DTMF 模式
音訊編碼全部啟用避免相容性問題
影像編碼H.264需與門口機編碼格式一致
聯絡人新增門口機號碼辨識特定門口機的來電

備註:
1. SIP 伺服器必須支援 DTMF 穿透,確保指令正常傳輸。
2. 影像伺服器需支援 H.264 媒體傳輸格式。

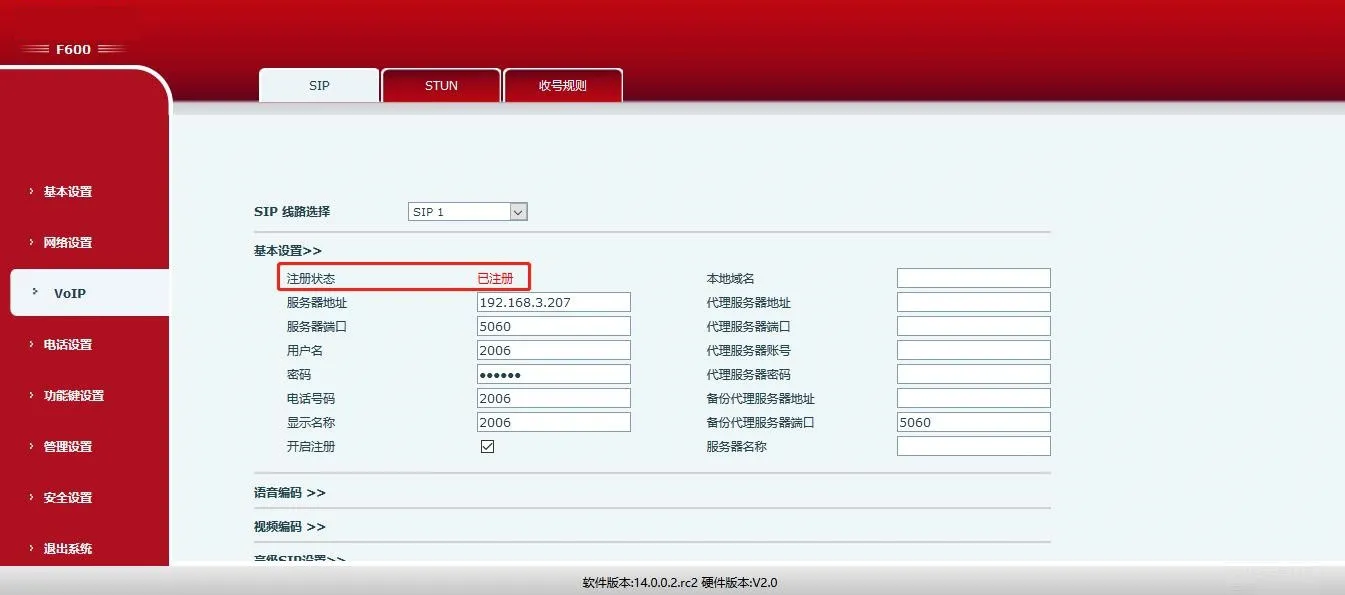

3.1.1 SIP 註冊

輸入 SIP 帳號資訊並開啟註冊功能,確保電話與門口機登入同一台 SIP 伺服器

網頁路徑:VOIP -> SIP -> 基礎設定

範例:
伺服器:192.168.3.207,連接埠:5060
使用者名稱:2006,密碼:******, 分機號碼:2006
顯示名稱:2006

勾選 啟用 並點擊 儲存

SIP 註冊介面

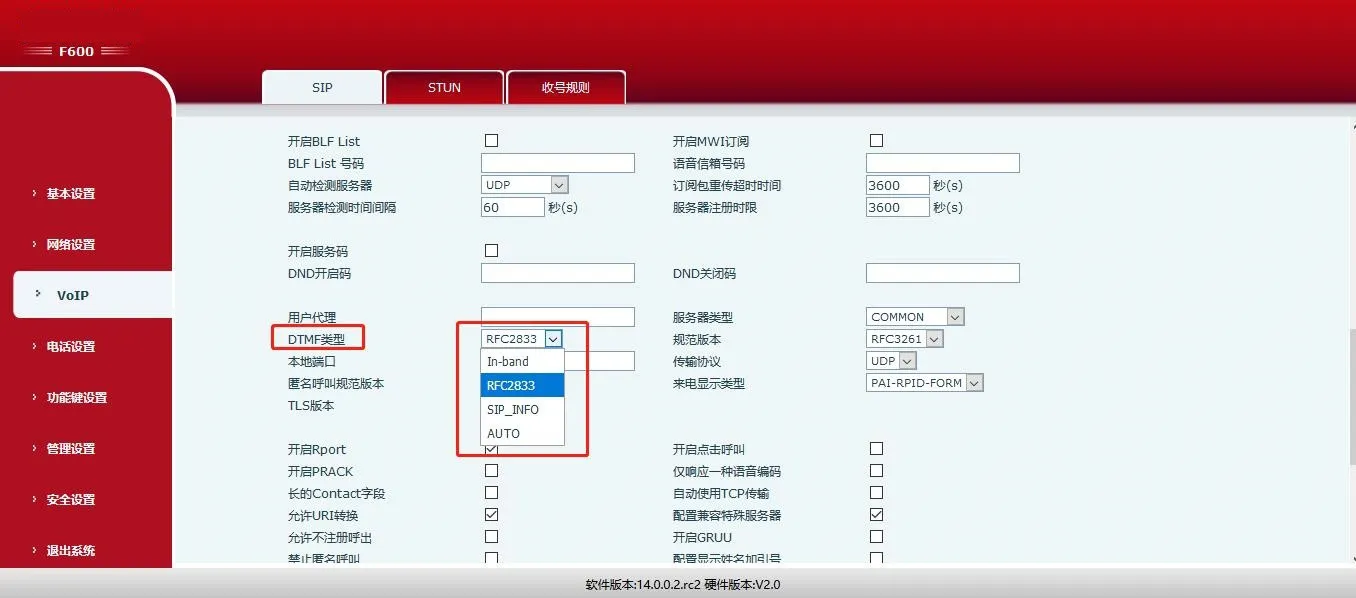

3.1.2 DTMF 類型

DTMF 請設定為 RFC2833 或 Info(Inband 模式不支援門鎖解鎖)。

網頁路徑:VOIP -> SIP -> SIP 進階設定

SIP 進階設定介面

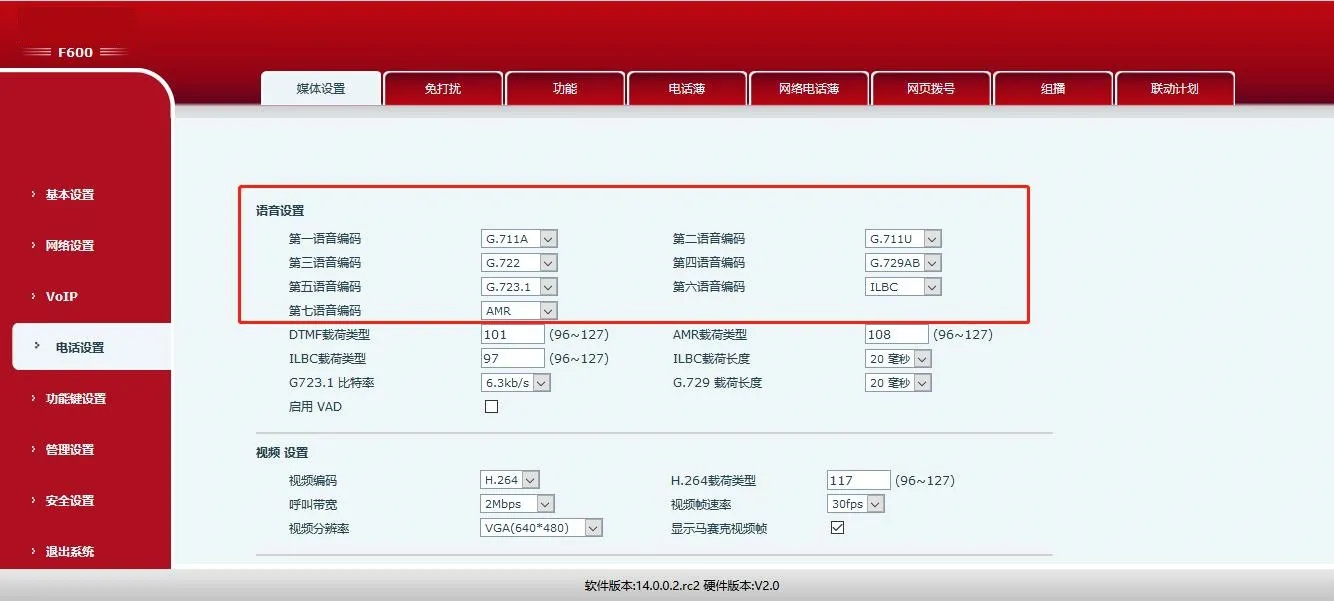

3.1.3 音訊編碼

全數開啟音訊編碼格式,確保與區域網路內所有門口機相容。

網頁路徑:電話設定 -> 媒體 -> 音訊設定

音訊設定介面

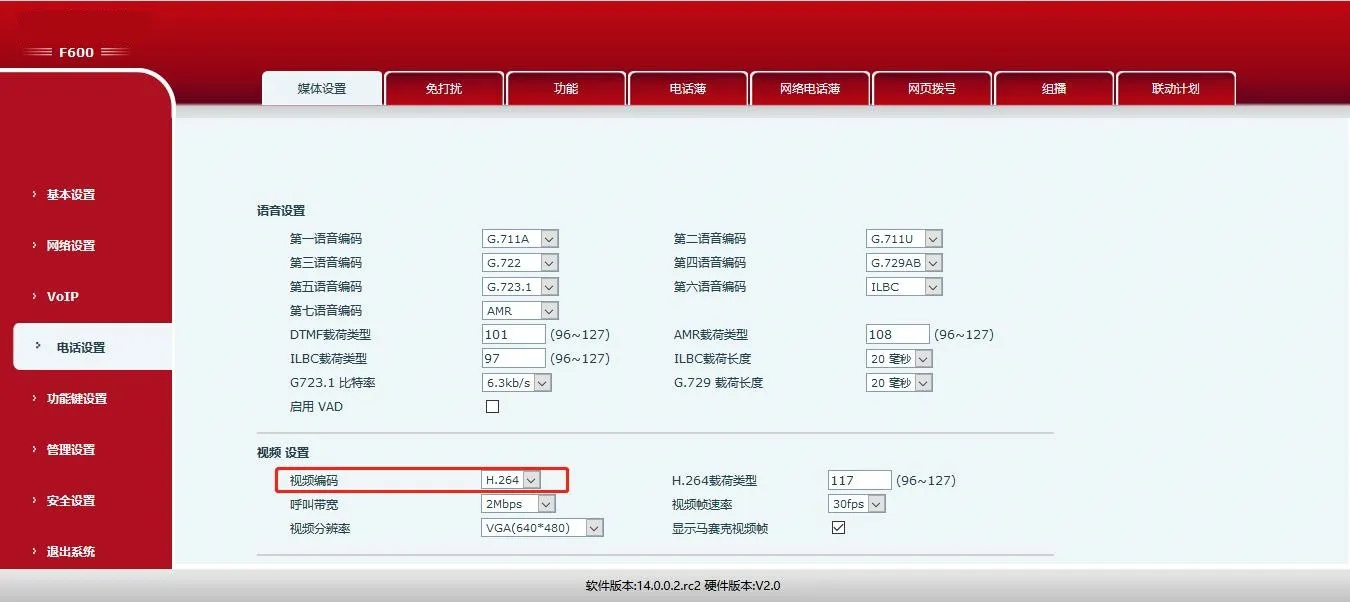

3.1.4 影像編碼

門口機僅支援 H.264 格式,請將電話影像編碼設定為 H.264。

網頁路徑:電話設定 -> 媒體 -> 影像設定

補充:BF600S 亦支援對講模式與群播模式,詳細請參考官方手冊。

影像設定介面

門口機設定(Bi31s)

Bi31s 支援雙向語音、單向影像。訪客按下門鈴時,室內電話會響鈴;使用者可進行通話、即時觀看影像,並透過 DTMF 代碼遠端解鎖門鎖。

Bi31s 重點設定項目如下:

設定項目狀態說明
SIP 註冊已註冊與室內電話註冊至同一 SIP 伺服器
遠端解鎖代碼自訂僅限數字或 * 符號
APP 解鎖自訂(預設關閉)開啟後可透過撥打電話解鎖
遠端存取清單已啟用僅清單內號碼可解鎖門鎖
驗證碼長度自訂縮短解鎖等待時間
主要號碼室內電話 SIP 號碼室內電話之 SIP 帳號
驗證碼自訂門鎖解鎖專用代碼
自動接聽自訂(預設開啟)逾時後自動接聽來電

3.2.1 SIP 註冊

將門口機註冊至與室內電話相同的 SIP 伺服器。

網頁路徑:VOIP -> SIP -> 基礎設定

範例:
伺服器:192.168.3.207,連接埠:5060
使用者名稱:2008,密碼:******, 分機號碼:2008

勾選 啟用 並點擊 儲存

SIP 註冊成功介面

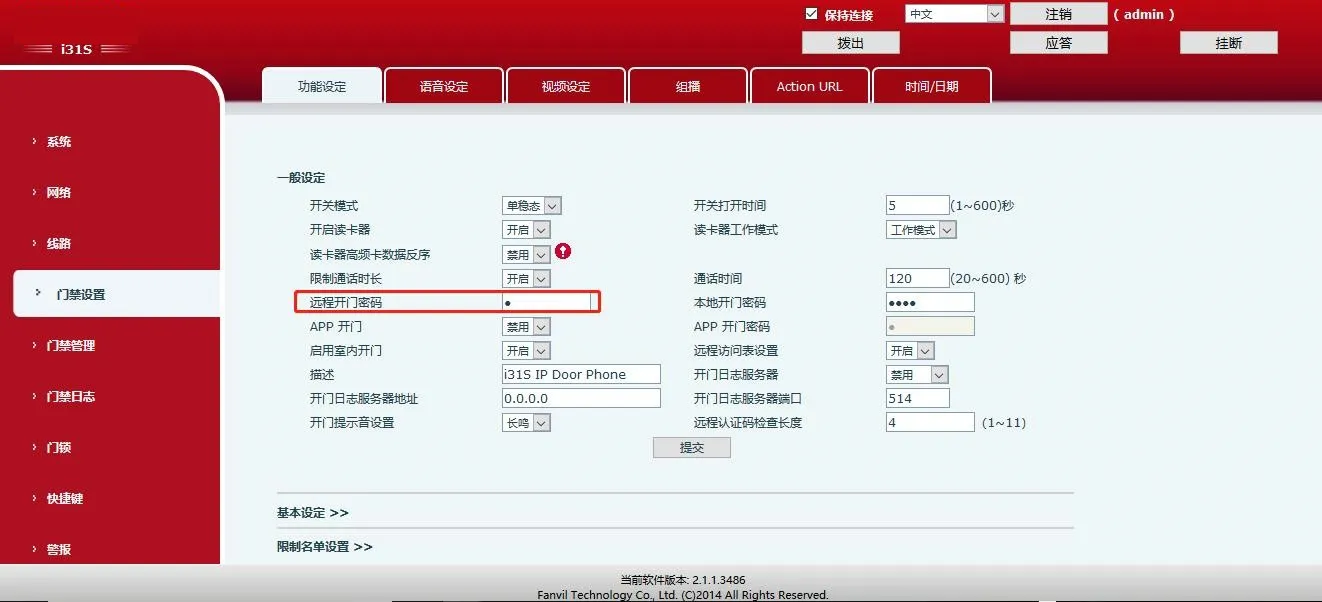

3.2.2 遠端解鎖代碼

自訂解鎖代碼(預設:*)。接聽門口機來電後,輸入此代碼即可解鎖。

網頁路徑:門口設定 -> 功能 -> 一般設定

備註:僅可輸入數字或 * 符號。

遠端門鎖解鎖介面

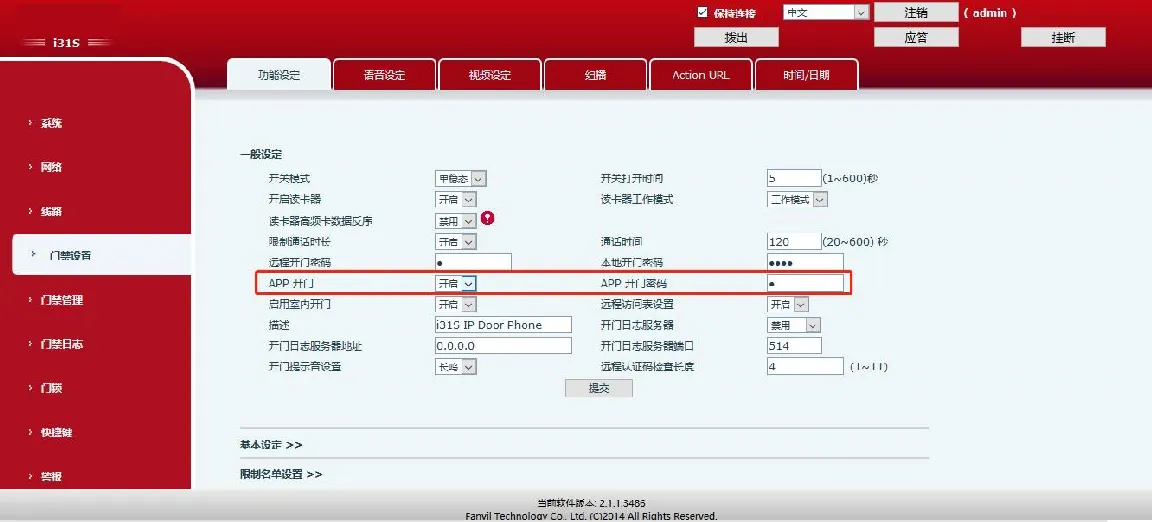

3.2.3 APP 解鎖

開啟 APP 解鎖功能,即可在電話撥打門口機時解鎖門鎖。

網頁路徑:門口設定 -> 功能 -> 一般設定

備註:密碼僅支援數字與 * 符號。

APP 遠端解鎖設定

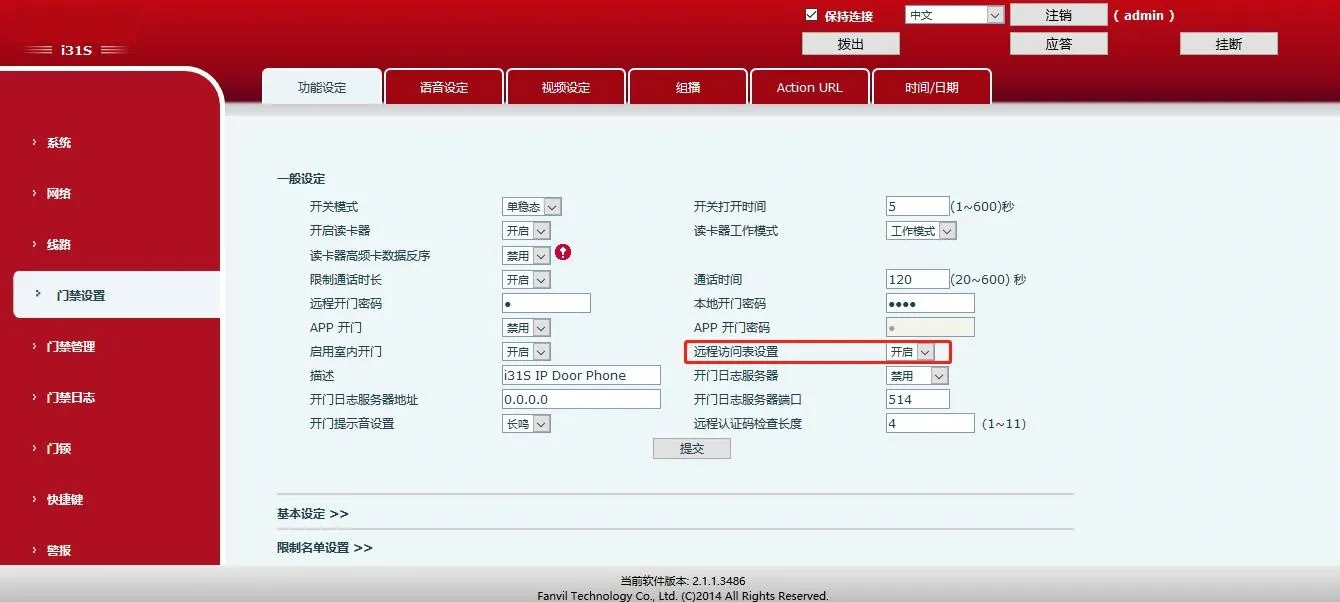

3.2.4 遠端存取清單

開啟存取清單(預設啟用),只有清單內的號碼能夠解鎖門鎖。

網頁路徑:門口設定 -> 功能 -> 一般設定

遠端存取清單介面

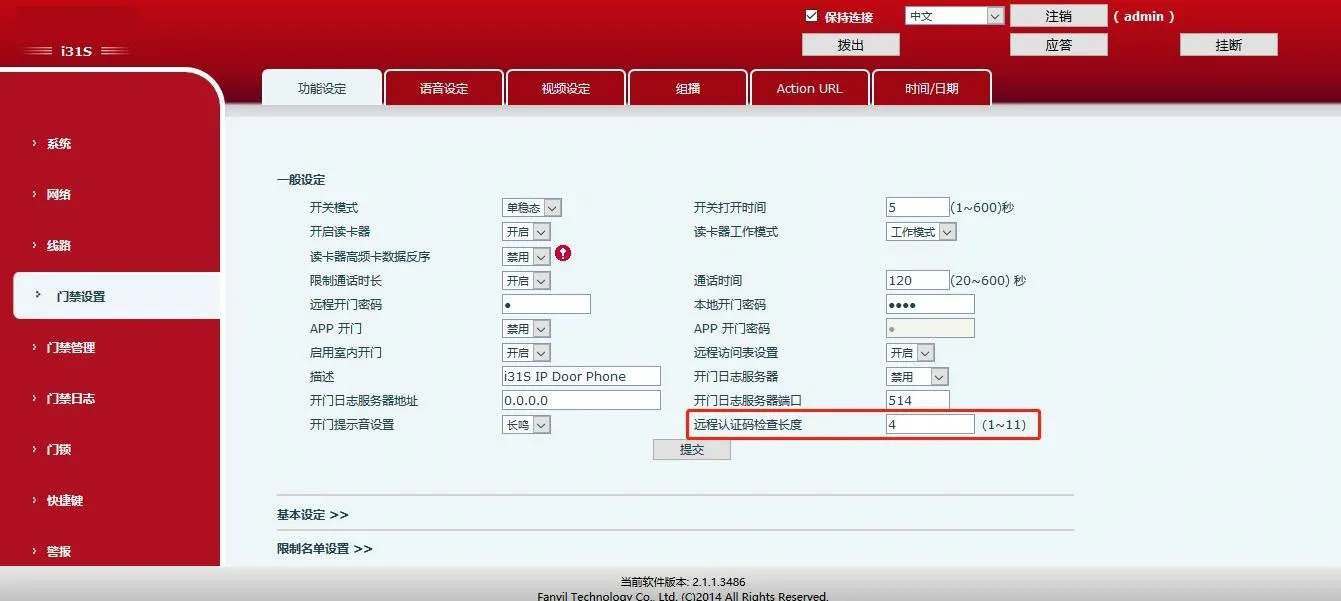

3.2.5 遠端驗證碼長度

設定代碼位數(1~11 位,預設 4 位)。系統辨識位數符合後,立即執行解鎖。

網頁路徑:門口設定 -> 功能 -> 一般設定

驗證碼長度設定

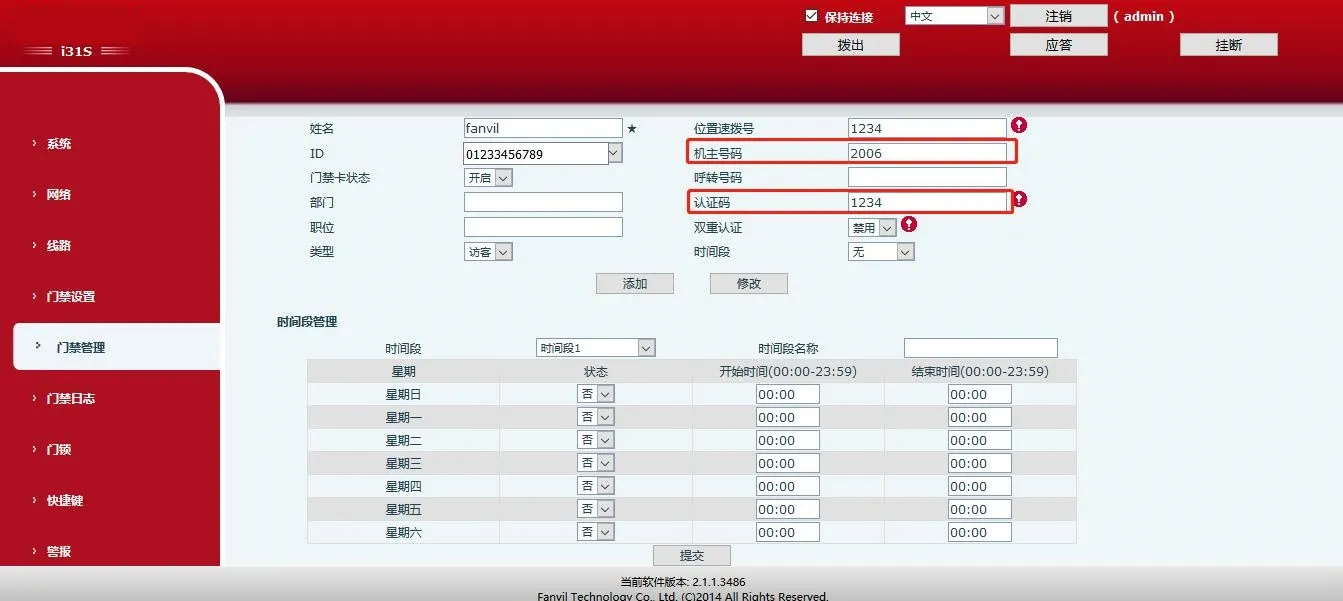

3.2.6 主要號碼與驗證碼

填入室內電話的 SIP 號碼做為主要號碼,並設定專屬解鎖驗證碼。

網頁路徑:門口管理 -> 新增存取規則

主要號碼與驗證碼介面

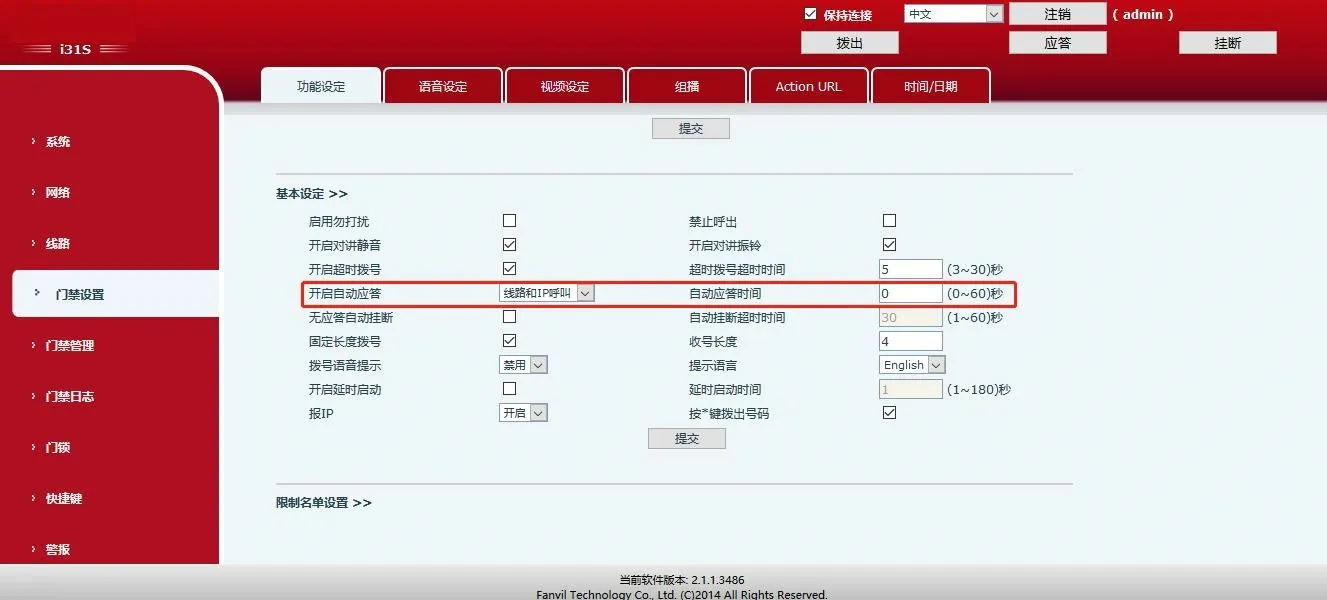

3.2.7 自動接聽

開啟逾時自動接聽,門口機將自動接聽室內電話的來電。

網頁路徑:門口設定 -> 功能 -> 基礎設定

自動接聽設定介面
