SIP Industrial Phone Static Provisioning Guide covers FTP/TFTP/HTTP server setup, web UI configuration, file download, firmware update, and batch deployment for industrial SIP phones.
Automatic provisioning means the terminal obtains the server address storing configuration files and other parameters for auto-provisioning. Then it downloads the configuration file from the corresponding server, parses it, and saves it locally for further updates such as firmware updates. This supports remote batch upgrade of a large number of phones via configuration files, saving time and labor.
Mainly used for configuration and upgrade of a large number of phones.
This document is mainly for personnel maintaining daily phone issues.

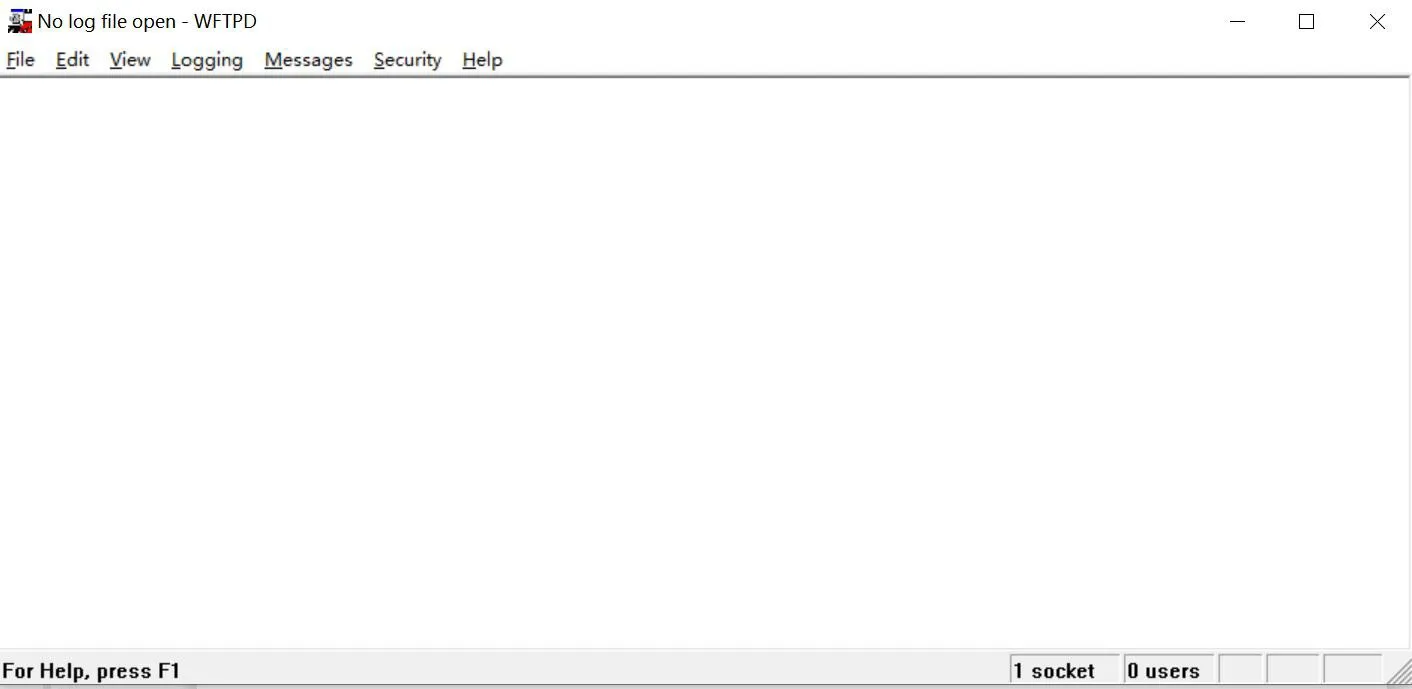

Download the wftpd.exe software.
Right-click and run wftpd.exe as administrator.

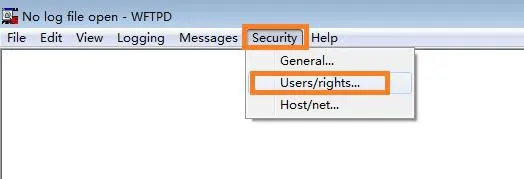

Select Security → Users/rights

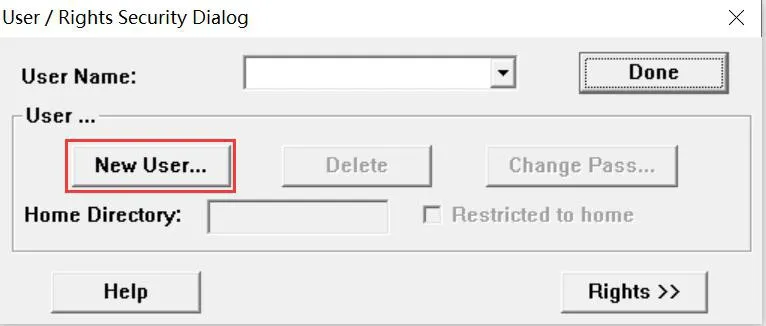

Click New User

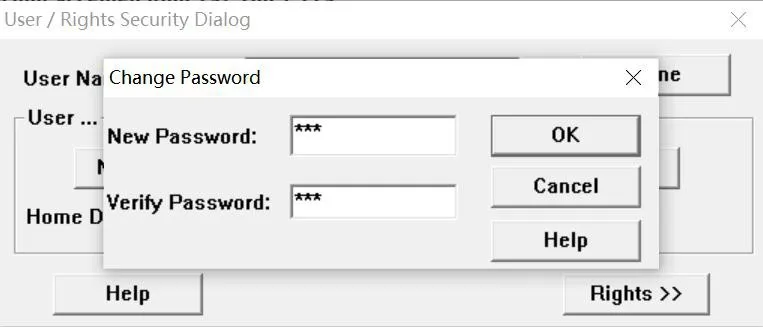

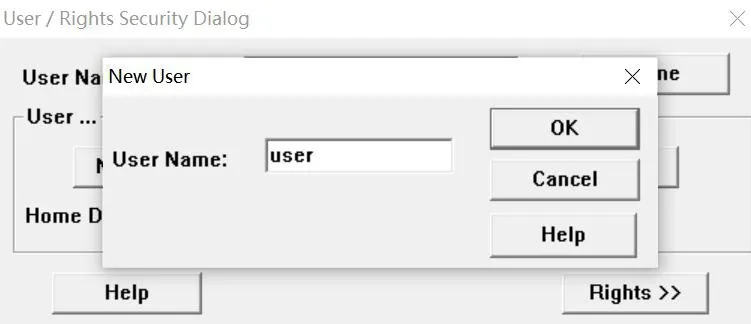

Enter username and password

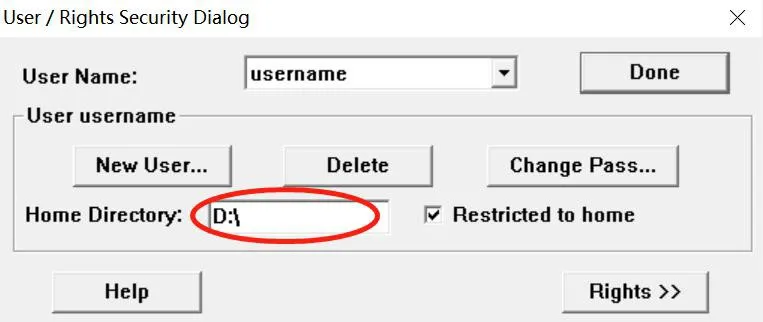

Set the FTP root directory

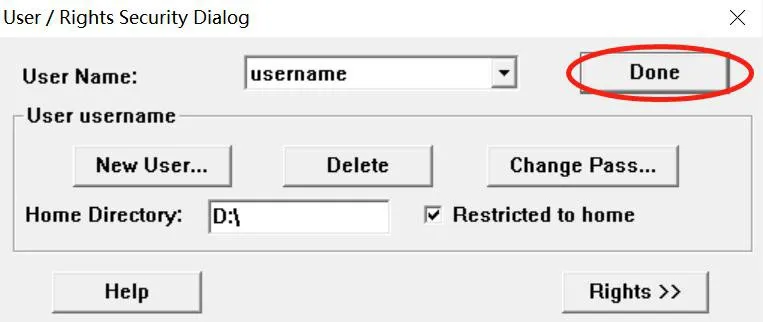

Click Done to complete configuration
Download the TFTPServer.exe software.

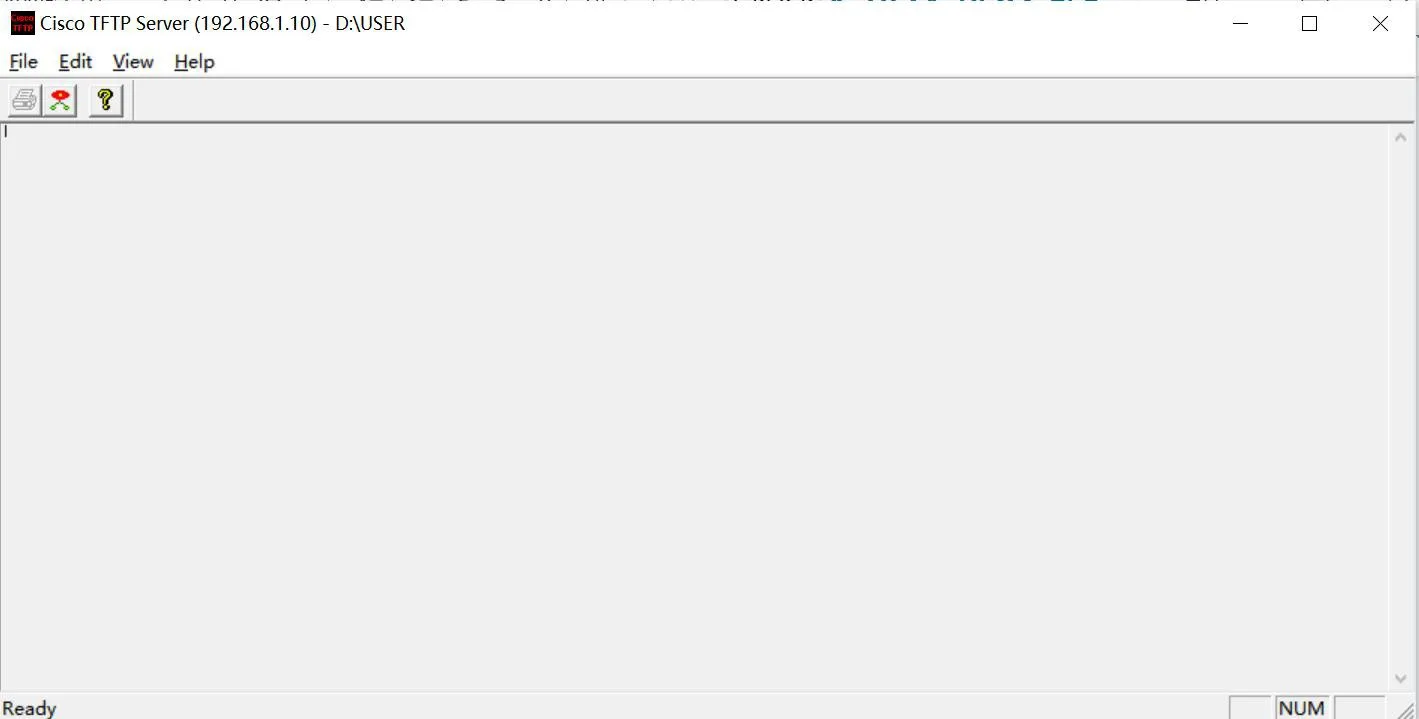

Right-click and run TFTPServer.exe as administrator.

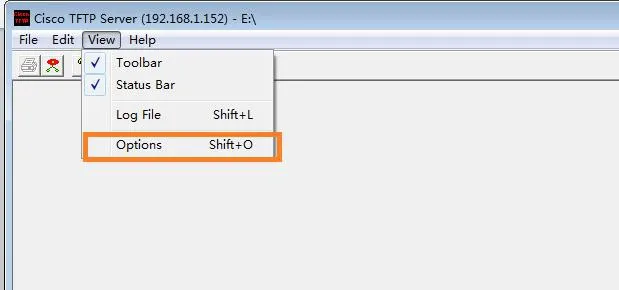

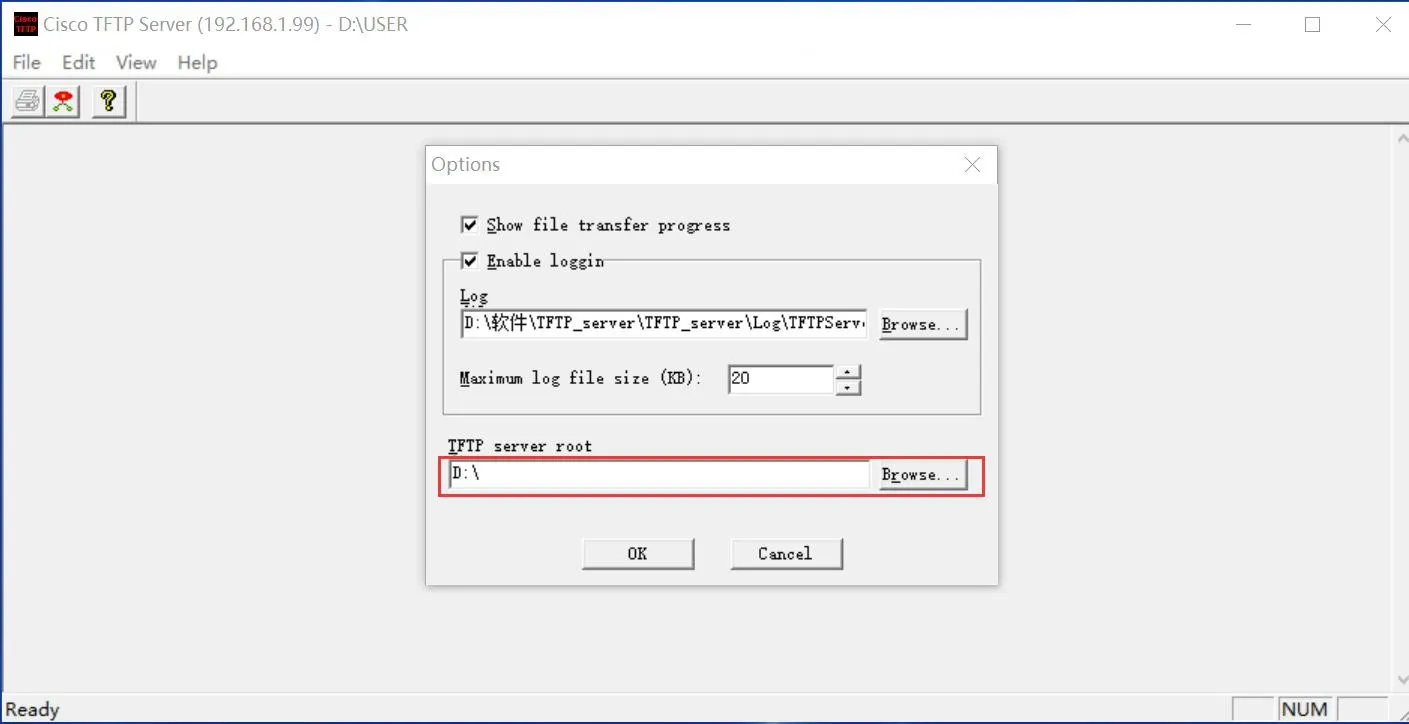

Click "View" → "Options" to set the TFTP server root directory

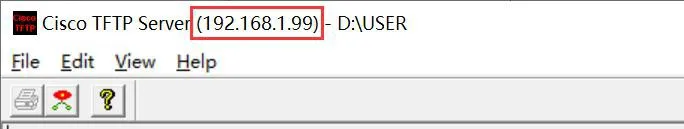

The IP displayed on the server is the server address, which is also the IP of the PC configuring the server.
Download the hts.exe software.

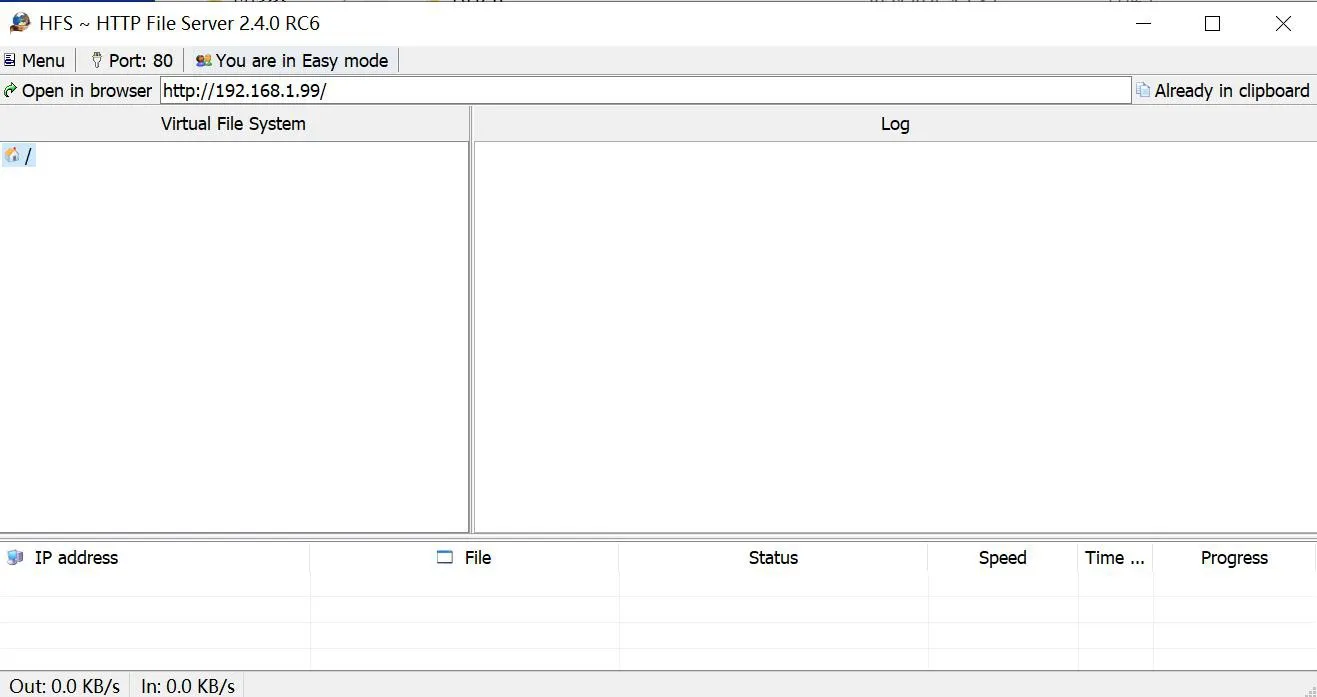

Right-click and run hts.exe as administrator.

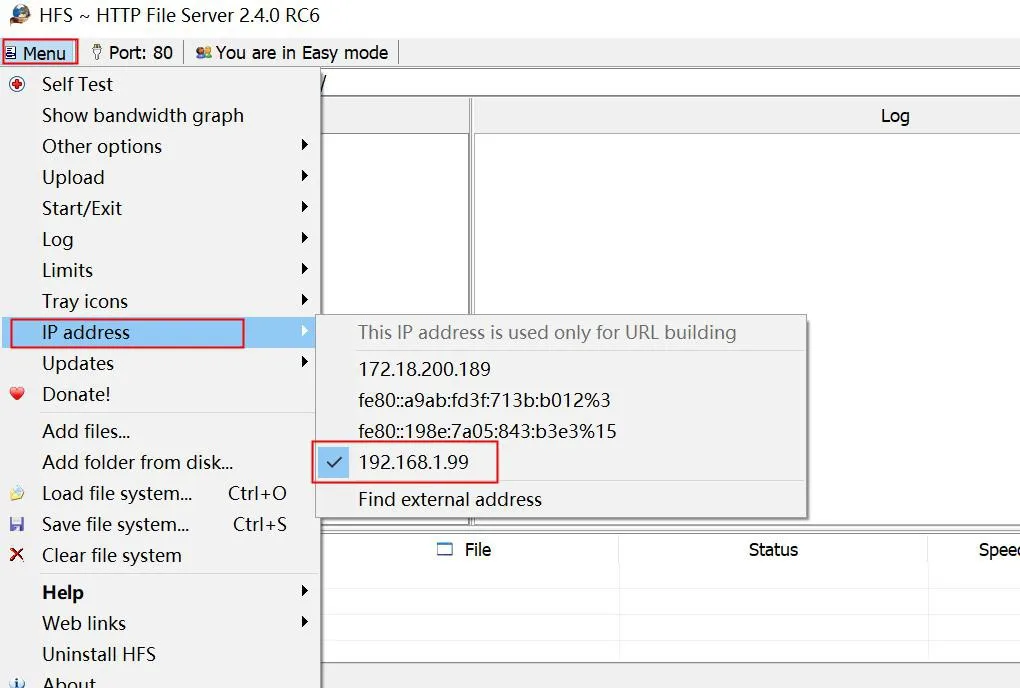

Select menu → ip address, choose the PC's IP

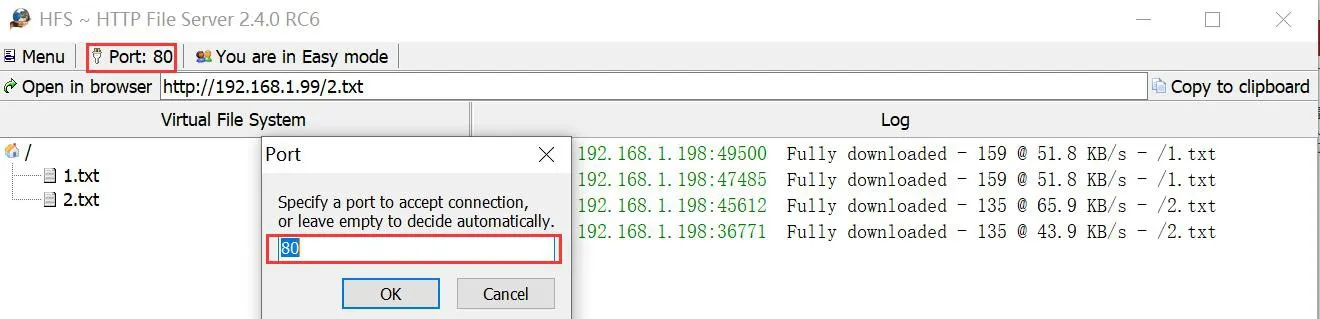

HTTP uses port 8080 by default, you can set it to another unused port such as 80.

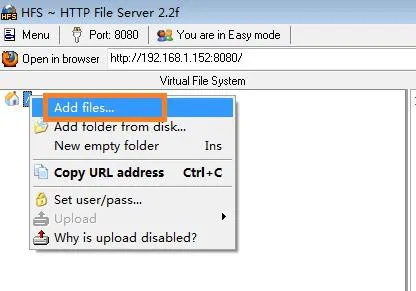

Right-click

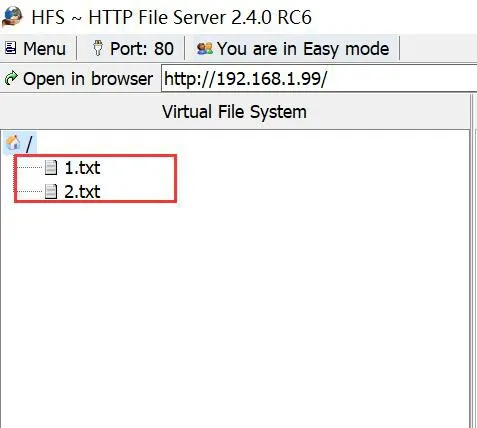

to add files

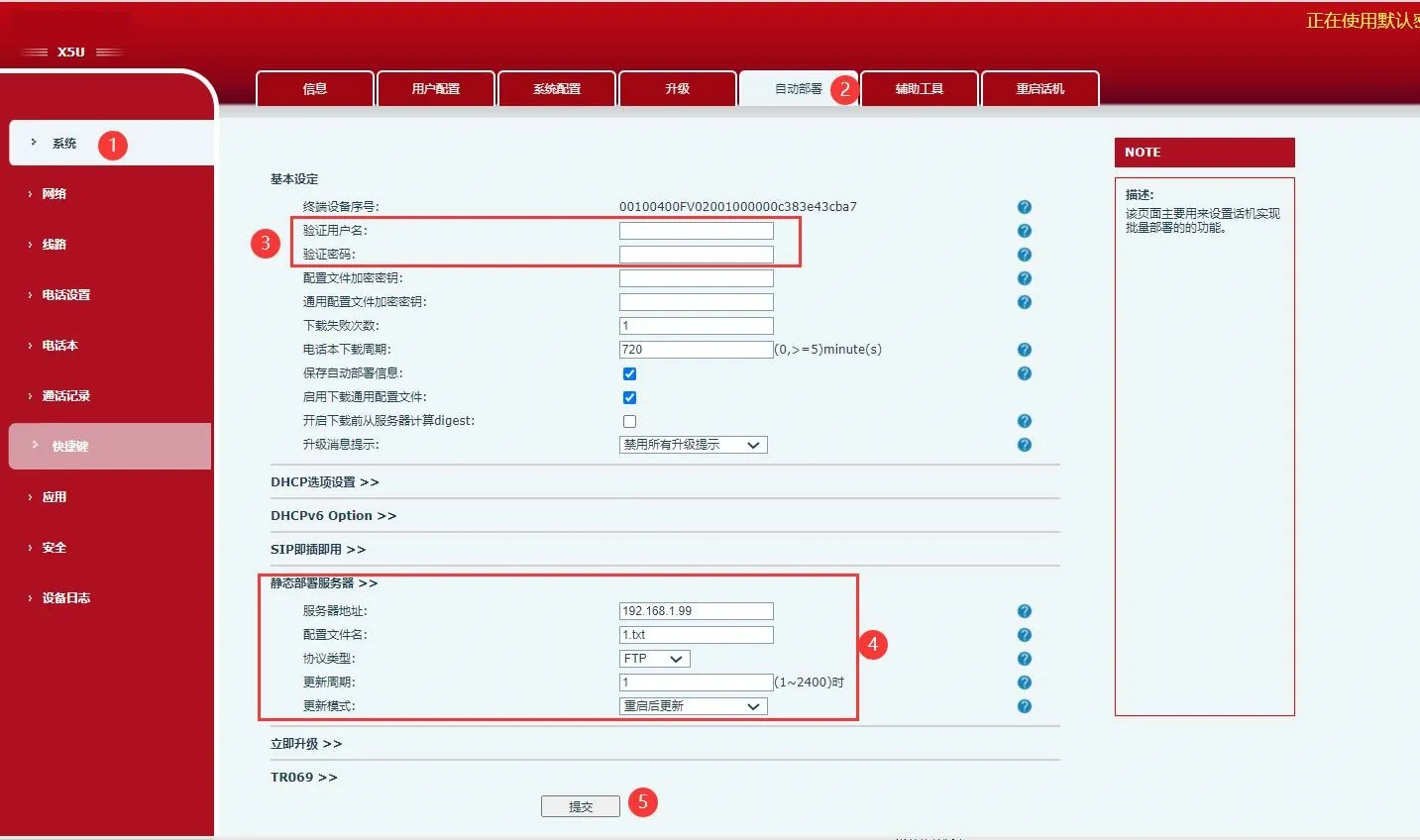

Enter the phone IP in the browser to log into the web backend. Click System → Auto Provision → Basic Settings → Static Provisioning Server for related settings.
Configuration Explanation:
