工業SIP電話時間設置指南(包括網絡時間同步)

介紹

概述

本指南說明如何同步手機上顯示的時間。

適用型號

我們所有手機型號均支援此功能(本文以X5U為例)。

前提條件

① 一部手機,已連接到交換器並能獲取IP位址。
② 一台用於配置的電腦,連接到與手機相同的交換器,確保電腦與手機之間的網路通訊。

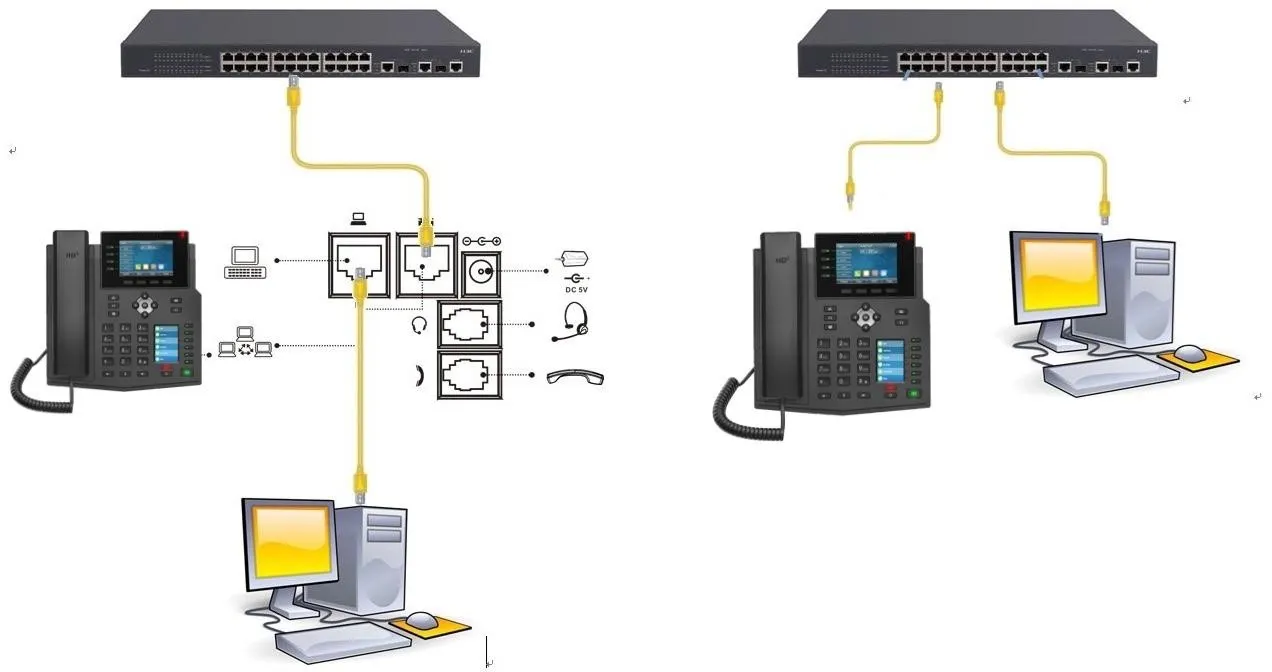

手機與電腦連接示意圖

Connection diagram

配置步驟

方法一:從SIP伺服器同步時間

在手機液晶螢幕上,點擊"選單" — "狀態"查看手機IP位址。

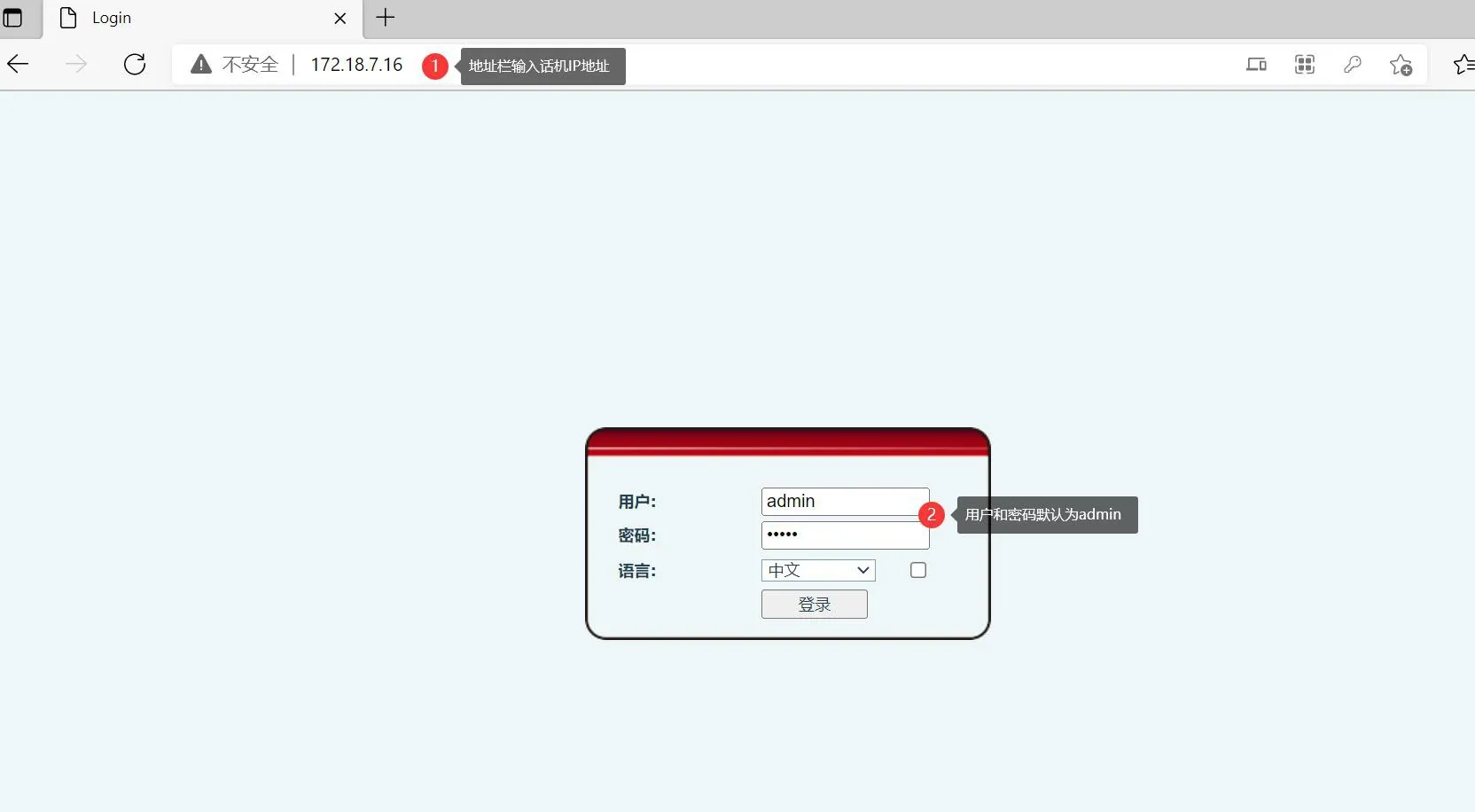

在電腦上打開瀏覽器,在網址列中輸入手機IP位址,登入手機網頁介面。
Web interface

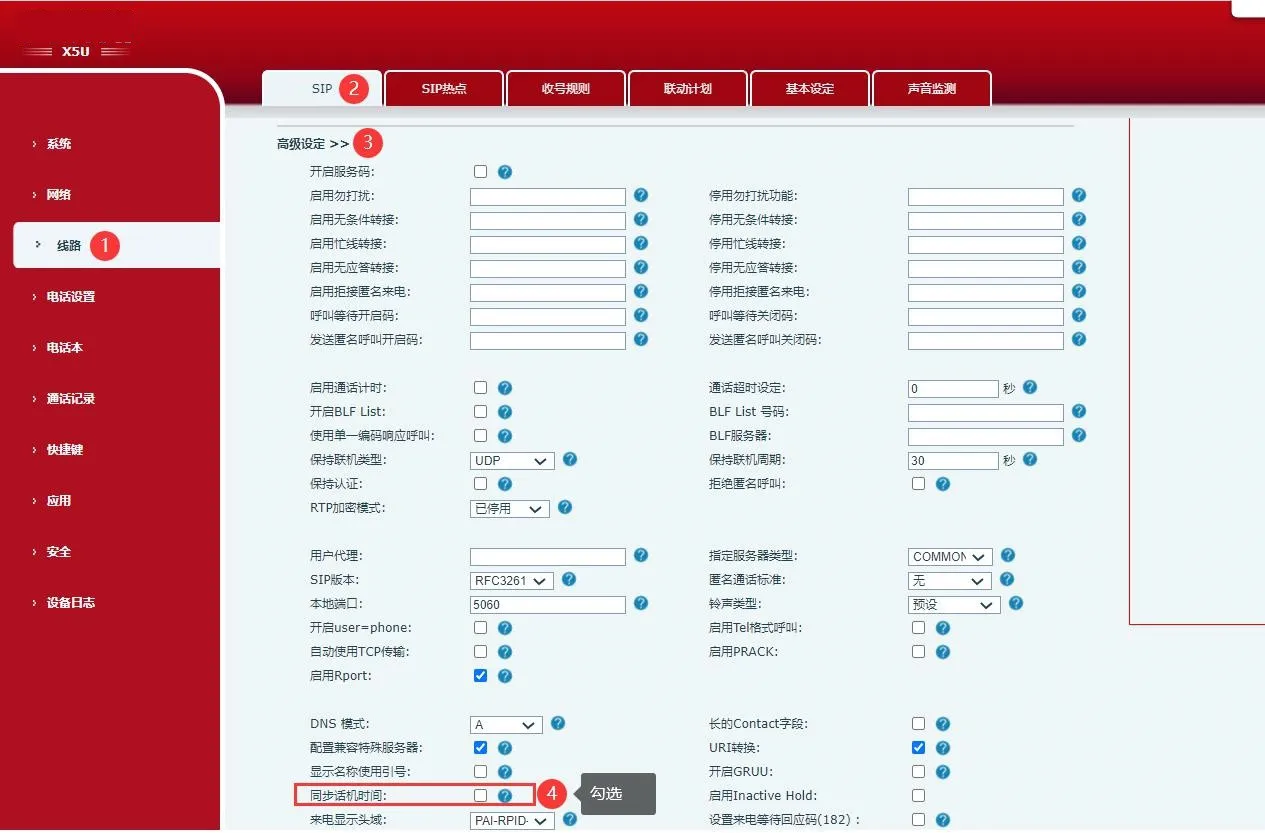

登入網頁介面後,進入"線路" - "SIP" - "進階設定",啟用"同步手機時間"。
Sync phone time
透過SIP註冊同步時間時,手機使用伺服器200 OK回應中的日期欄位作為時間參考,然後根據手機設定的時區進行調整顯示。啟用SIP時間同步後,SNTP和DHCP時間同步將自動停用。此方法要求SIP伺服器在200 OK回應中包含日期欄位。

方法二:同步網路時間

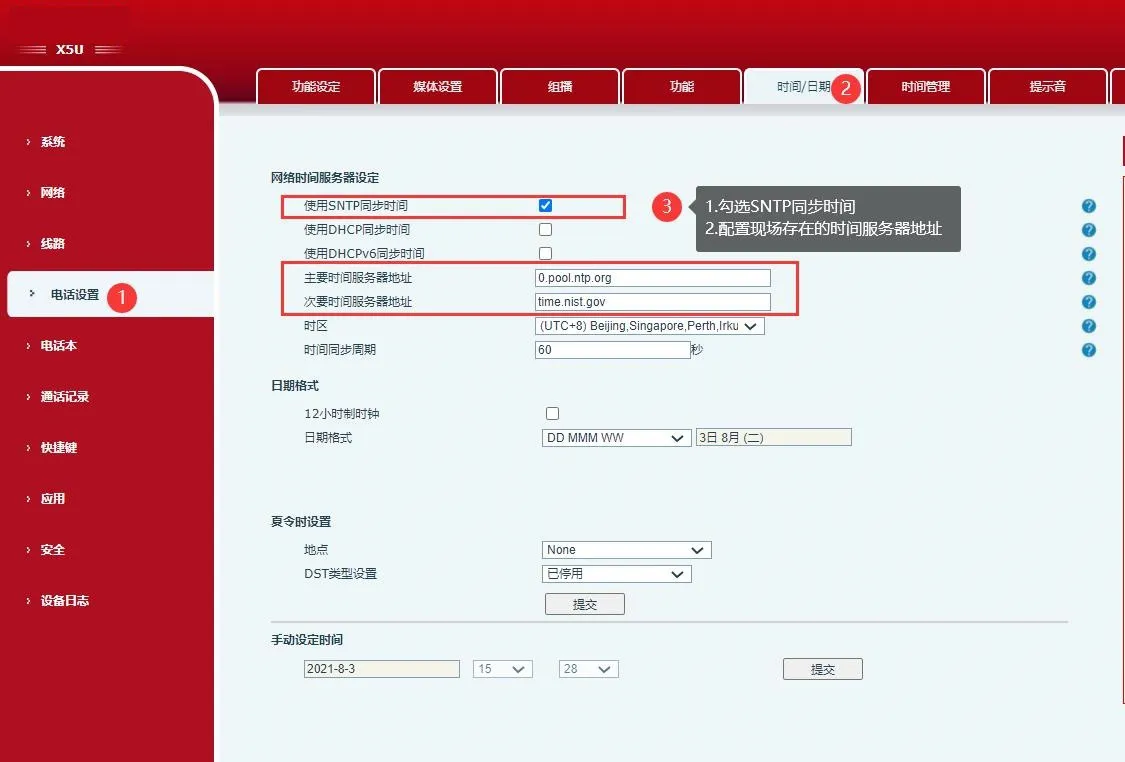

登入手機網頁介面,然後進入"手機設定" - "時間/日期",按下圖1所示配置。
使用SNTP進行時間同步即設定"主/輔時間伺服器位址"。這些位址可以設定為IP位址或網域名稱。啟動後,手機向主伺服器查詢目前時間。如果主伺服器無回應,則自動切換到輔伺服器。運行期間,手機定期更新時間。此方法需要預先設定SNTP伺服器位址。
Synchronize network time
                                                                                                                                                 圖1

方法三:透過DHCP同步時間

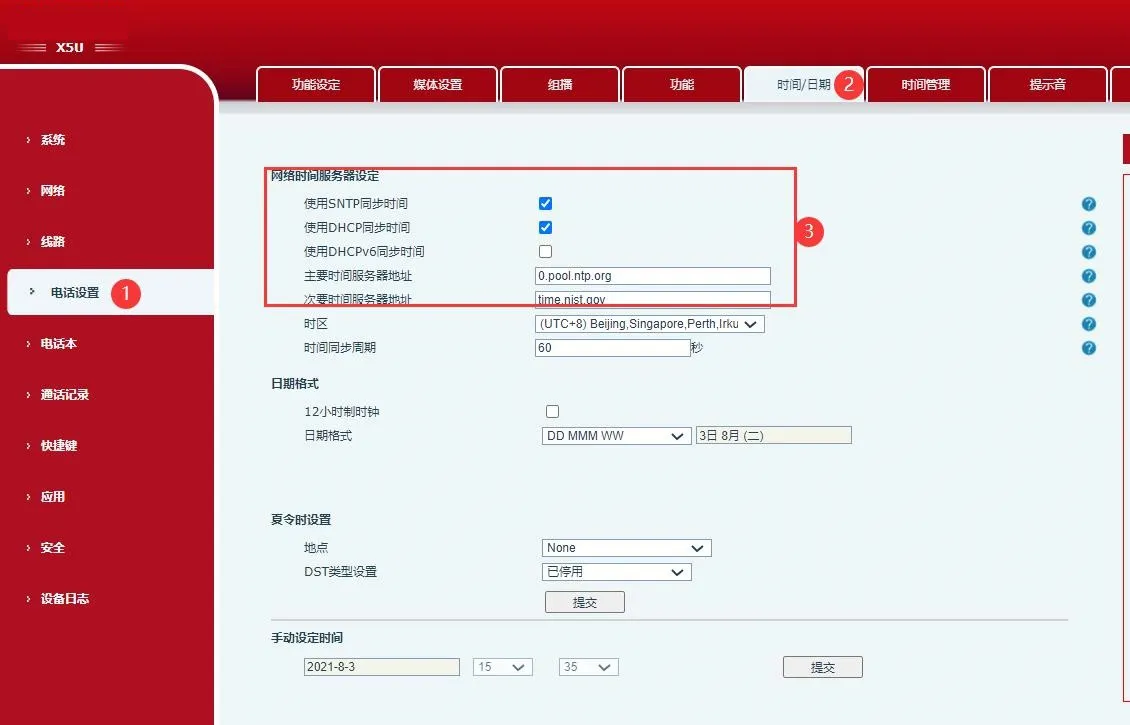

登入手機網頁介面,然後進入"手機設定" - "時間/日期",按下圖2所示配置。
要使用此方法,必須同時啟用"使用SNTP時間同步"並且網路模式設為DHCP。在此模式下,手機啟動時透過DHCP獲取IP位址。當收到伺服器的ACK回應時,它會從選項42中讀取SNTP伺服器位址,並將其寫入"主/輔時間伺服器位址"欄位,然後透過SNTP同步時間。此方法要求DHCP伺服器支援選項42
DHCP time synchronization
                                                                                                                                              圖2
