室內監視器&SIP可視電話視頻預覽功能介紹

簡介

概述

本文件描述室內監視器與 SIP 影像電話的影像預覽功能。 影像預覽功能允許被叫設備在接聽通話前顯示來電者的影像。廣泛應用於門口機通話,讓用戶在接聽或開門前確認訪客身份。

適用型號

本公司所有室內監視器及影像電話。

影像預覽運作方式

支援兩種預覽模式:

  • Preview 18x 模式:透過響鈴期間的 18x SIP 信令中攜帶的 SDP 數據建立影像連線,允許在接聽通話前進行影像預覽。

  • Preview 2xx 模式:第一個 200 OK 訊息僅建立影像(無語音通話)。當用戶接聽時發送第二個 200 OK 以建立全雙工通話。

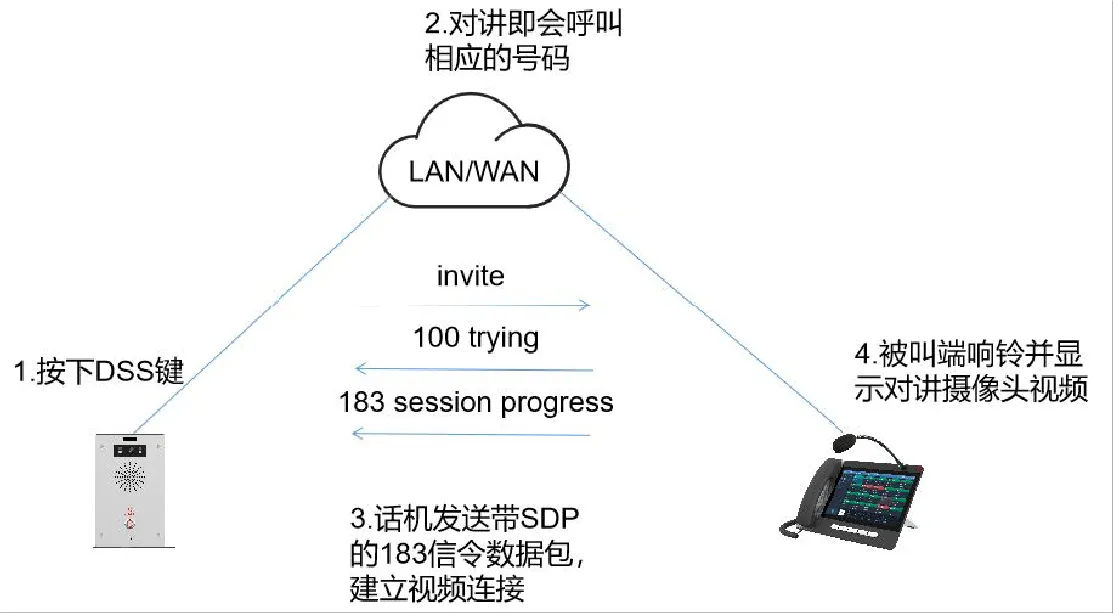

Video Preview 18x Mode

影像預覽 18x 模式

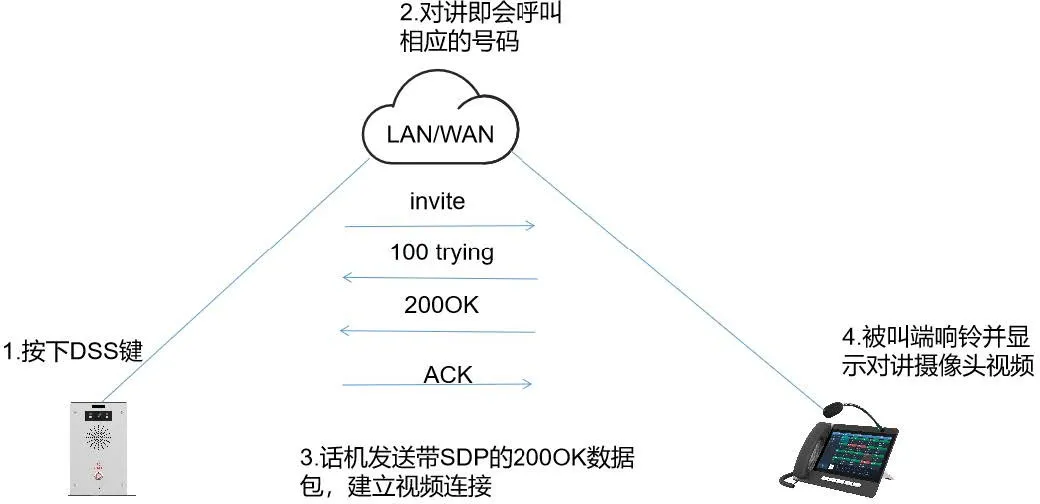

Video Preview 2xx Mode

影像預覽 2xx 模式

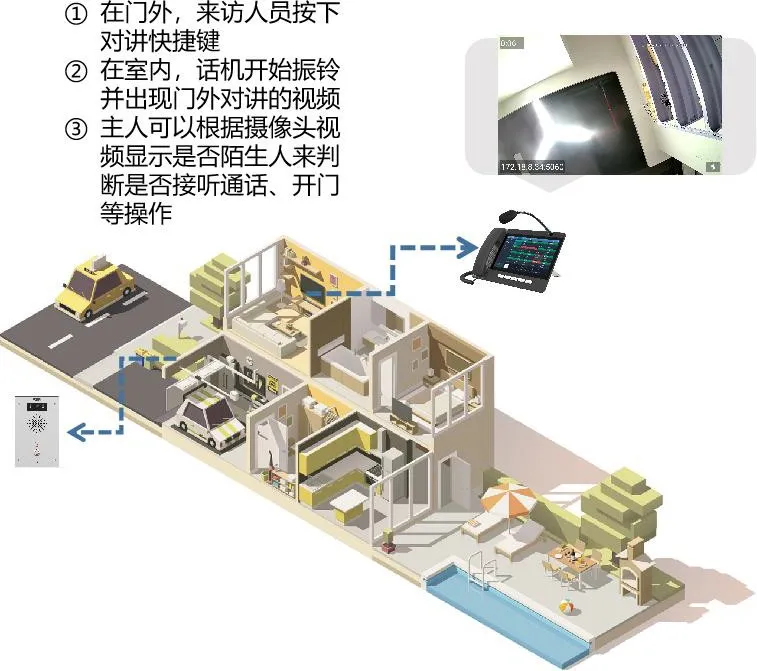

應用場景

Video Preview Application Scenario

前提條件

  1. 確保您的設備是影像電話或室內監視器。

  2. 準備一台與影像設備同處於一個區域網路(LAN)的設定用電腦。

連線圖

網路連線範例(BHP-SOS16、IP電話、PC):

Device Connection Diagram

操作指南

支援兩種通話模式:點對點(P2P)SIP 伺服器通話。 設定方式依通話模式而異。我們以 i16V 和 A32i 為例。

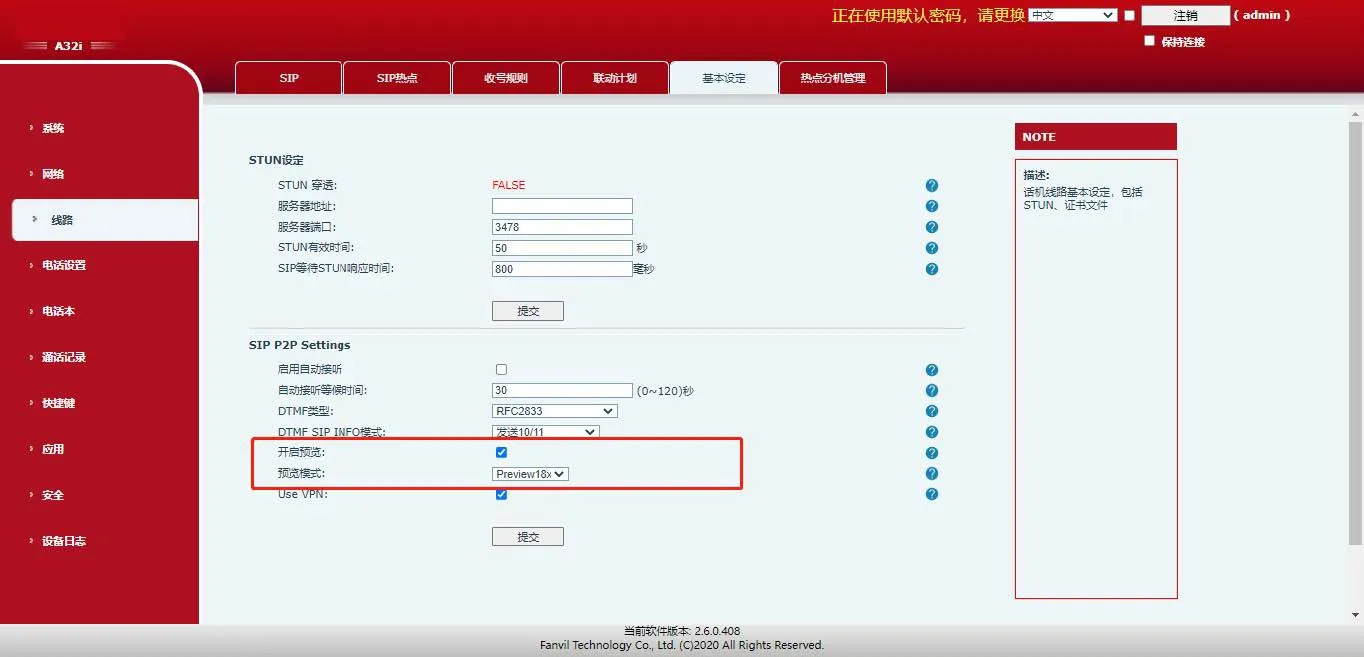

點對點通話影像預覽設定

  1. 登入設備網頁介面。

  2. 前往 線路 → 基本設定

  3. 勾選 啟用預覽並選擇模式(預設:Preview 18x)。

  4. 點擊 套用以儲存設定。

P2P Call Video Preview Configuration

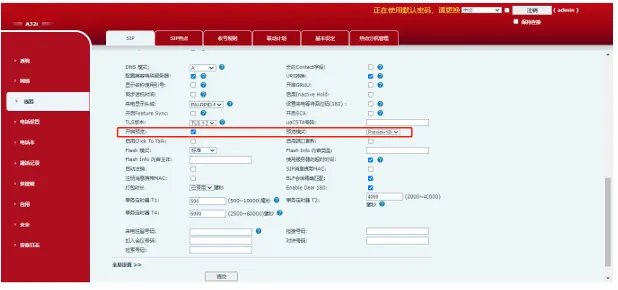

SIP 帳號通話影像預覽設定

  1. 登入設備網頁介面。

  2. 前往 線路 → SIP → 進階設定

  3. 勾選 啟用預覽並選擇模式(預設:Preview 18x)。

  4. 點擊 套用以儲存設定。

SIP Account Call Video Preview Configuration

常見問題與解決方案

  1. 部分 SIP 伺服器上的響鈴群組故障
       若影像預覽導致響鈴群組中無影像或自動掛斷,請停用預覽功能。

  2. Beke 伺服器與 18x 模式不相容
       若 Beke 伺服器版本低於 18.5.28,請切換到 Preview 2xx 模式或升級伺服器。

  3. 伺服器上禁用了早期媒體
       請聯絡您的伺服器供應商以啟用 Early Media
