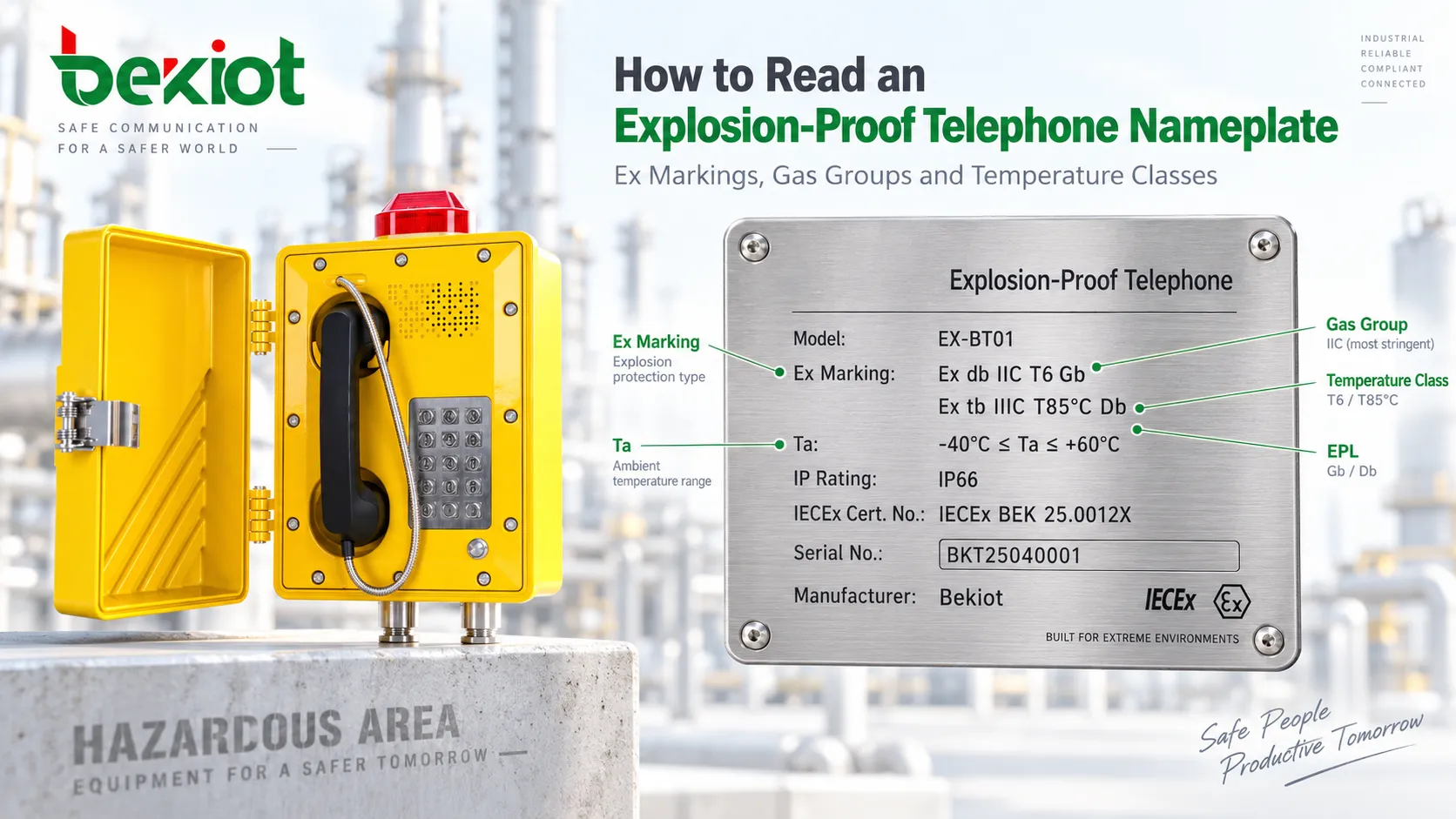

如何閱讀防爆電話銘牌

防爆電話銘牌標識防爆保護方式、氣體及粉塵組別、T1–T6、EPL、IP 等級與環境溫度限值。完整型號證書及其條件必須符合現場危險區域分類要求。

貝克電信

如何閱讀防爆電話銘牌

防爆電話銘牌用於識別設備及其標示的爆炸性環境保護。應先將其與現場危險區域分類進行核對,再驗證完整型號、證書和安裝說明。黃色外殼、IP 等級或僅有“IIC T6”字樣,都不足以證明適用性。

拆解 Ex 標誌的各個部分

以下氣體防爆標誌僅為示例,並非對某款電話的認證聲明:

Ex db IIC T6 Gb
要素含義
Ex依據適用標準標示的防爆保護。
db保護級別為 b 的隔爆外殼保護。
IIC氣體設備子組別。
T6氣體溫度組別,在規定條件下將最高表面溫度限制為 85°C。
Gb氣體環境的設備保護級別(EPL)。

單獨獲得認證的粉塵標誌可能為 Ex tb IIIC T85°C Db:tb 表示外殼粉塵防護,IIIC 涵蓋導電性粉塵,T85°C 表示最高表面溫度,Db 為粉塵 EPL。氣體和粉塵標誌對應不同的評估。氣體許可不能證明粉塵適用性,粉塵設備選擇還須考慮粉塵雲與粉塵層的點燃條件。

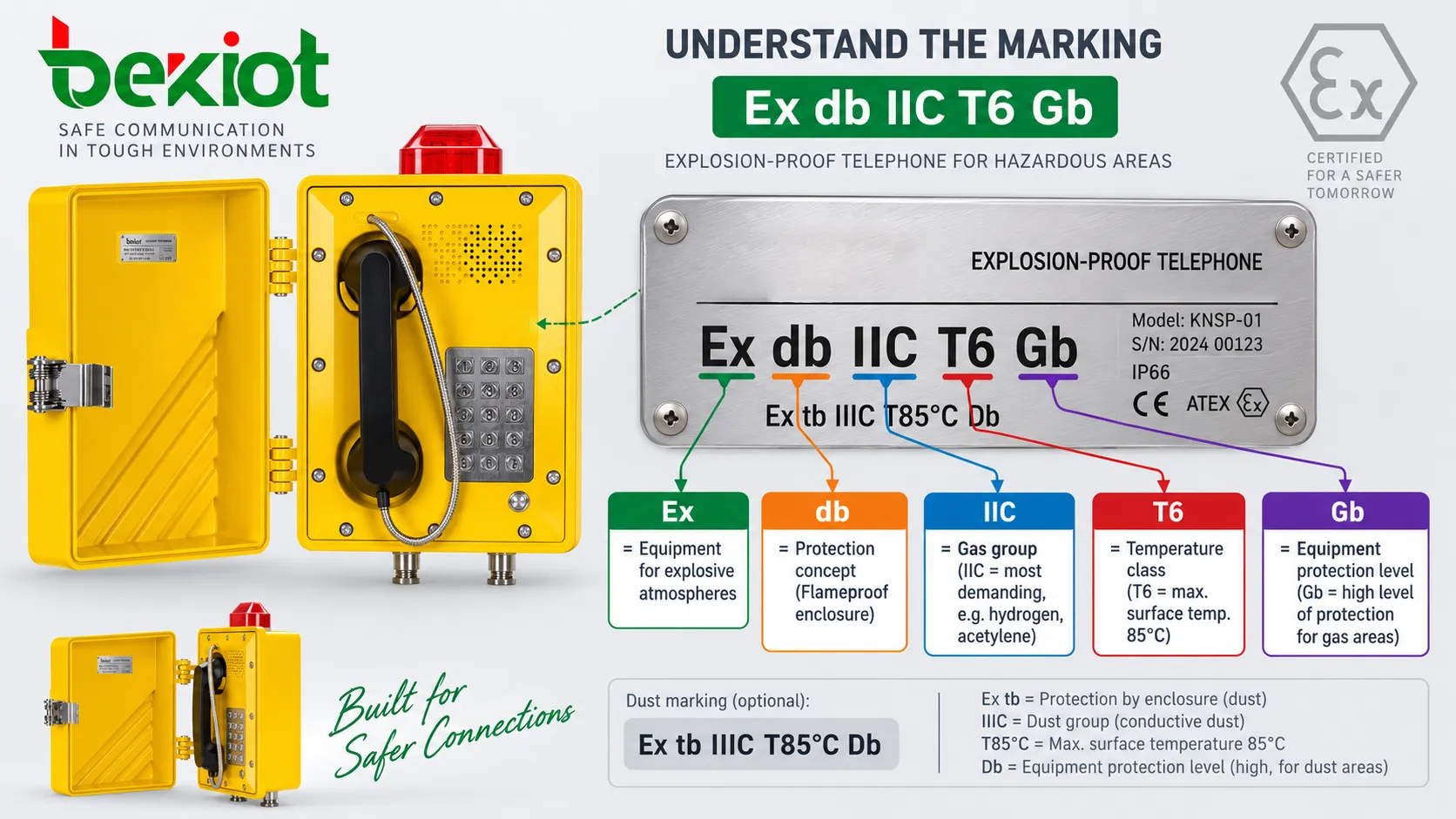

電話銘牌示意圖,標註 Ex db IIC T6 Gb 各部分以及單獨的粉塵標誌
防爆標誌拆解示意圖

理解保護方式與整機範圍

隔爆保護 d 或 db 採用能夠承受內部爆炸、並阻止其點燃周圍規定爆炸性環境的外殼及隔爆接合面。增安保護 e 或 eb 在其規定條件下,通過結構措施防止火花或過高溫度引起點燃。本質安全保護 i(如 ia 或 ib 級)在規定的正常和故障條件下限制電能及熱能,並不表示物理上不可能產生火花。

例如 Ex db eb IIC T6 Gb 這樣的複合標誌表示採用了多種保護方式。這不是字母越多、電話就越好的等級排名。應核實每種方式如何適用於認證整機、接線端子和外部電路。

未經允許的程序,不得在外殼鑽孔、替換緊固件、改變隔爆接合面或更改進線裝置。部件或空外殼的證書本身不能證明組裝後的電話已獲整機認證。外殼、內部構件、附件及安裝均須符合批准範圍。

獨立核對氣體組別與溫度要求

地面工業氣體環境的 II 類進一步分為 IIA、IIB 和 IIC,常見代表性例子依次為丙烷、乙烯,以及氫氣或乙炔。這些僅是組別示例,不是完整的物質選型依據。礦用 I 類與粉塵 III 類需要另行核查。

現場氣體子組別可滿足該要求的設備子組別
IIAIIA、IIB 或 IIC
IIBIIB 或 IIC
IICIIC

本表僅涉及氣體組別要求,並須遵守具體限制。IIC 設備通常可滿足 IIB 和 IIA 的組別要求,但單獨的 IIB 標誌不能滿足 IIC 要求。仍須繼續檢查溫度、EPL、環境限值及完整證書。

區分 T1–T6 與環境溫度

氣體溫度組別規定設備在認證條件下的最高表面溫度,並非允許的環境溫度。

溫度組別最高表面溫度
T1450°C
T2300°C
T3200°C
T4135°C
T5100°C
T685°C

T6 允許的表面溫度低於 T4;滿足全部適用條件時,可以符合 T4 溫度組別要求。但這不表示電話可以在 85°C 環境中運行。必須另行核實認證的 Ta 範圍。

例如,-40°C ≤ Ta ≤ +60°C 不覆蓋溫度達到 65°C 的現場。多個溫度額定值可能分別取決於環境溫度、電氣負載或配置;應使用證書中對應的組合,而不是從每行挑選最吸引人的數值。

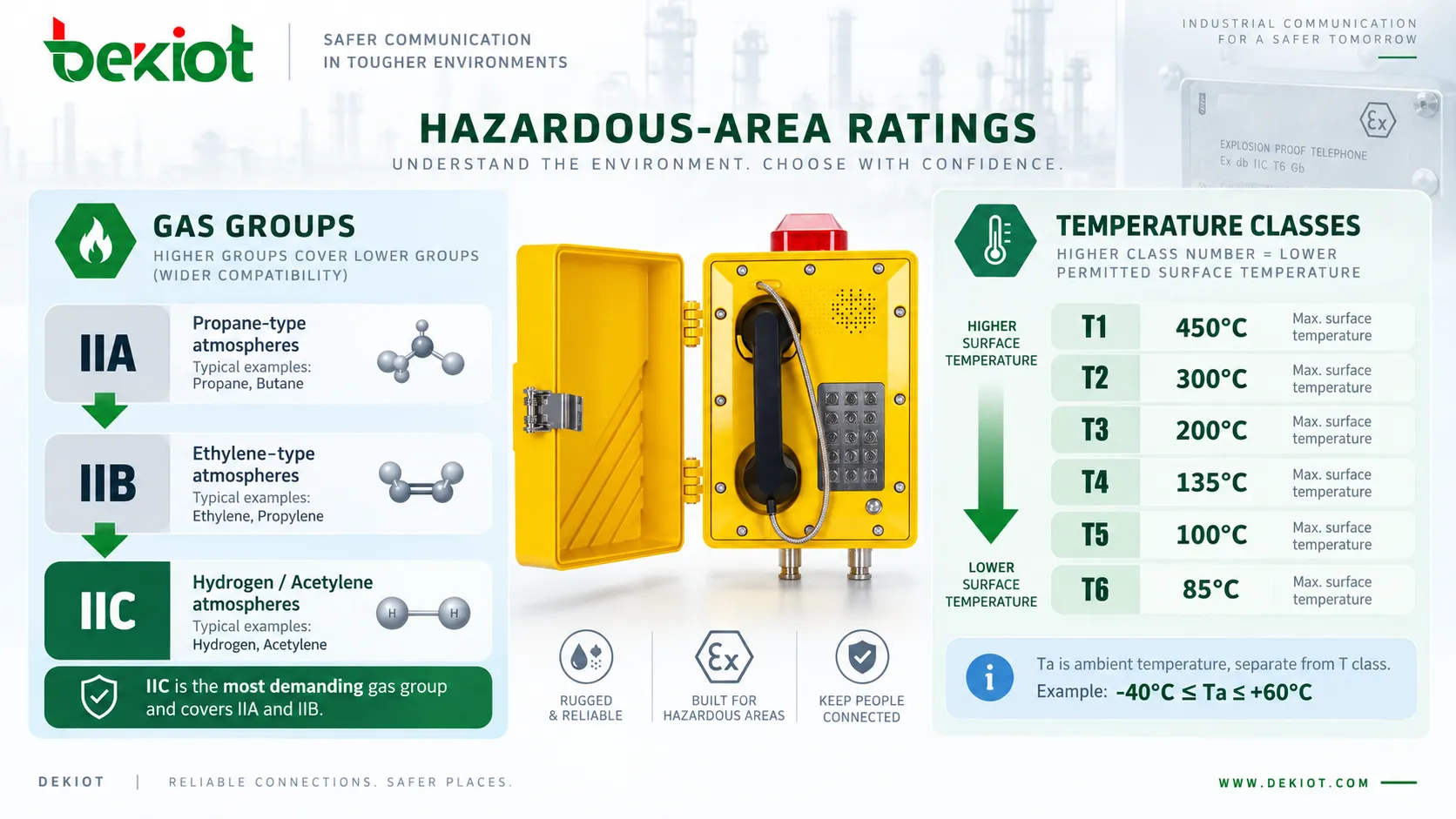

對比 IIA 至 IIC 氣體組別及 T1 至 T6 溫度組別,並顯示示例環境溫度範圍的示意圖
氣體組別與溫度組別示意圖

核查 EPL、外殼防護與證書條件

按通常的 IEC 選型對應關係,0 區要求 Ga;1 區允許 Gb 或 Ga;2 區允許 Gc、Gb 或 Ga。粉塵場合中,20 區要求 Da;21 區允許 Db 或 Da;22 區允許 Dc、Db 或 Da。應將現場指定 EPL 和當地適用規則,與完整保護方式及證書一併核對。

IP66 描述防塵和防水侵入保護。它不是 Ex 許可,不代表可無限制沖洗,也不能替代腐蝕評估。應在不損害 Ex 設計的前提下核實所需環境防護。

將實物型號與變型、製造商、電氣額定值、環境範圍和證書編號,與實際證書及其當前狀態逐一核對。後綴 X 表示必須遵守的特殊使用條件。後綴 U 標識需要進一步評估後才能集成的 Ex 部件,並不是完整電話可獨立使用的許可。

IECEx 和 ATEX 是不同的合格評定框架。IECEx 認證不會自動滿足歐盟市場要求或所有國家的許可制度。對於 ATEX 產品,應核查適用的歐盟聲明、設備組別與類別、氣體或粉塵標識,以及交付整機的合格文件。

從現場要求反向核查設備

假設現場要求為 1 區、氣體子組別 IIB、溫度組別 T4,環境運行範圍為 -20°C 至 +55°C。Ex db IIC T6 Gb 標誌可能滿足氣體組別、溫度組別及通常的 EPL 要求,但僅憑該標誌無法判斷認證環境範圍是否覆蓋該現場。

  1. 確認氣體或粉塵分類、物質組別、要求的溫度限值與指定 EPL。

  2. 核對完整設備標誌、可接受的合格評定路徑,以及準確的認證型號或變型。

  3. 根據擬定安裝方案,核查環境限值、供電、進線裝置、附件及所有 X 條件。

  4. 到貨時,將實物銘牌與獲批報審文件和證書核對;安裝前解決標識缺失、損壞或不一致問題。

  5. 由具備能力的人員核查安裝及初始檢查記錄,並保留文件用於維護。

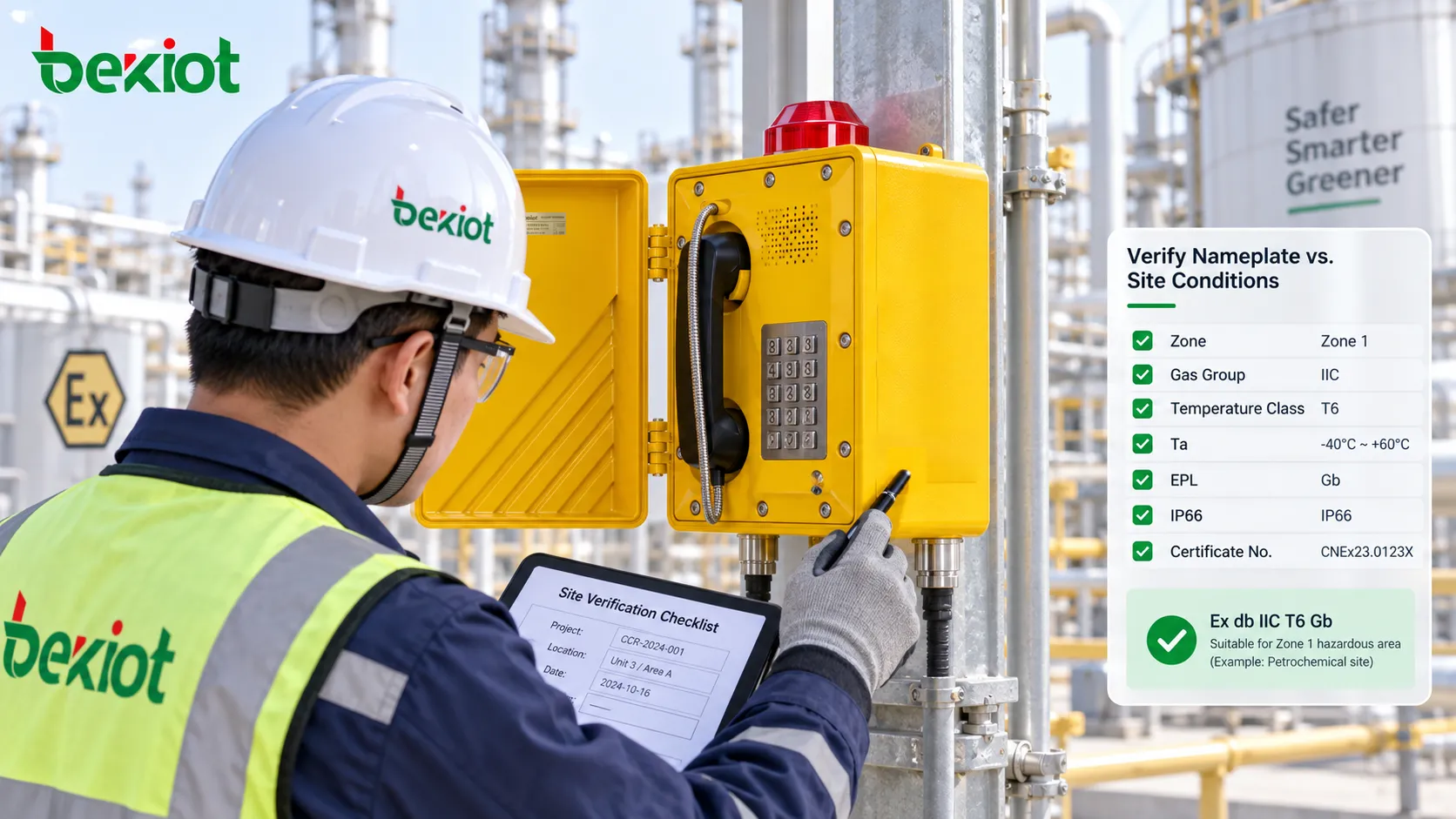

工程師將電話銘牌與現場核驗檢查表進行比對的示意圖
現場核驗示意圖

應將上述審查與 SIP、模擬或調度功能選型分別處理。這些通信功能不能證明危險區域適用性;更全面的規格選擇可參閱電話選型指南。

常見問題

IIC T6 是否意味着電話適用於所有 1 區現場?

不是。它僅涉及氣體組別和溫度組別。EPL、保護方式、環境範圍、證書範圍、安裝條件及當地接受要求也必須匹配。

IP66 能否替代 Ex 標誌?

不能。防侵入保護與防爆保護描述的是不同屬性。耐候電話可能完全沒有危險區域使用許可。

同時出現 IIC 與 IIIC 時應看哪一行?

氣體分類應核對氣體標誌行,粉塵分類應核對粉塵標誌行。IIC 和 IIIC 不是同一尺度上的等級。如果兩類危險均相關,應同時評估。

示例銘牌是否足以獲得採購批准?

不足以。應取得實際型號的標誌、完整證書、條件及說明,並確認適用於交付整機。示意圖不能驗證產品認證。

官方參考資料

IECEx 設備選型指南涵蓋組別、溫度組別及安裝選型。IECEx 安裝研討會資料解釋 EPL 對應關係、X 條件和部件範圍。歐盟委員會 ATEX 概述解釋歐盟設備框架。
