5GC UE發起的去註冊流程

5GC UE發起的去註冊涉及請求範圍、條件式SMF/UPF及策略清理、正常去註冊與關機的區別、T3521,以及已釋放或保留上下文的信令檢查。

貝克電信

5GC UE發起的去註冊流程

僅憑RRC Release不能證明UE已完成去註冊。已註冊的UE可以釋放接取信令連線,同時由AMF保留註冊上下文、SMF保留PDU工作階段。UE發起的去註冊則從NAS Deregistration Request開始,並結束指定接取的註冊。

分析信令追蹤時,應依序確認請求範圍、適用的工作階段與策略清理,以及預期的NAS回應。AMF、SMF、UPF、PCF與UDM各自保存不同部分的狀態,不會在同一瞬間刪除所有UE紀錄。

先確認去註冊範圍

UE使用其5G-GUTI向AMF傳送Deregistration Request。應檢查Deregistration type、其中的Switch off指示,以及Access Type。目標可以是3GPP接取、非3GPP接取,或在兩種接取由同一AMF服務時同時涵蓋兩者。承載請求的接取不一定就是要移除的接取。

在NAS編碼層面,接取類型是去註冊類型資訊元素的一部分,並非下圖以示意IEI標示的獨立欄位。身分與完整性保護必須根據實際NAS上下文檢查;未受保護或無法驗證的請求,可能需要先處理安全程序再清理資源。

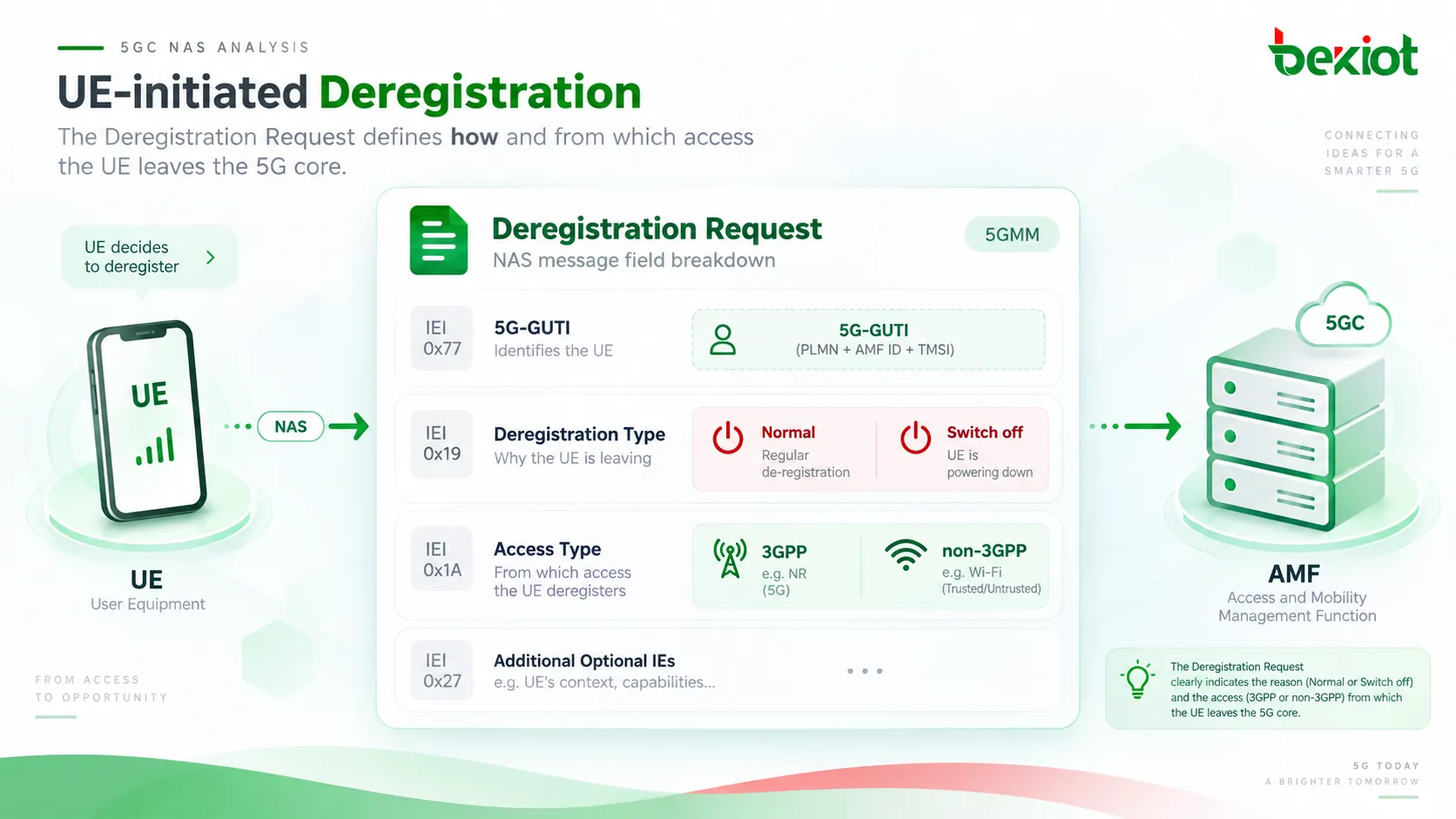

UE向AMF傳送Deregistration Request的示意圖,強調身分、去註冊類型與接取範圍。
UE向AMF傳送Deregistration Request的示意圖,強調身分、去註冊類型與接取範圍

釋放屬於目標接取的PDU工作階段

如果目標接取沒有PDU工作階段,就略過工作階段釋放步驟。否則,AMF針對每個受影響的工作階段,向相關SMF傳送Nsmf_PDUSession_ReleaseSMContext。獨立的PDU工作階段釋放可移除資料工作階段,同時維持註冊有效;去註冊的範圍則更廣。若多重接取(MA)PDU工作階段在兩種接取皆有使用者平面資源,對其中一種接取去註冊只會釋放該接取的使用者平面資源;工作階段仍可在另一種接取上保留。

SMF釋放已配置的工作階段資源,例如IP位址或前綴,並向適用UPF請求釋放N4工作階段。在N4上,PFCP Session Deletion Request與PFCP Session Deletion Response構成刪除交換。成功刪除後,該PFCP工作階段及其相關規則會被移除,包括適用的PDR、FAR、QER與URR,相關通道資源也會釋放。

SMF傳回SM上下文釋放回應。在歸屬路由漫遊情境下,還需V-SMF與H-SMF協調。參考流程的順序具有條件性:若需要次要RAT使用量回報,AMF會先完成NAS接受通知與接取釋放,取得使用量資料,再繼續清理工作階段與策略。

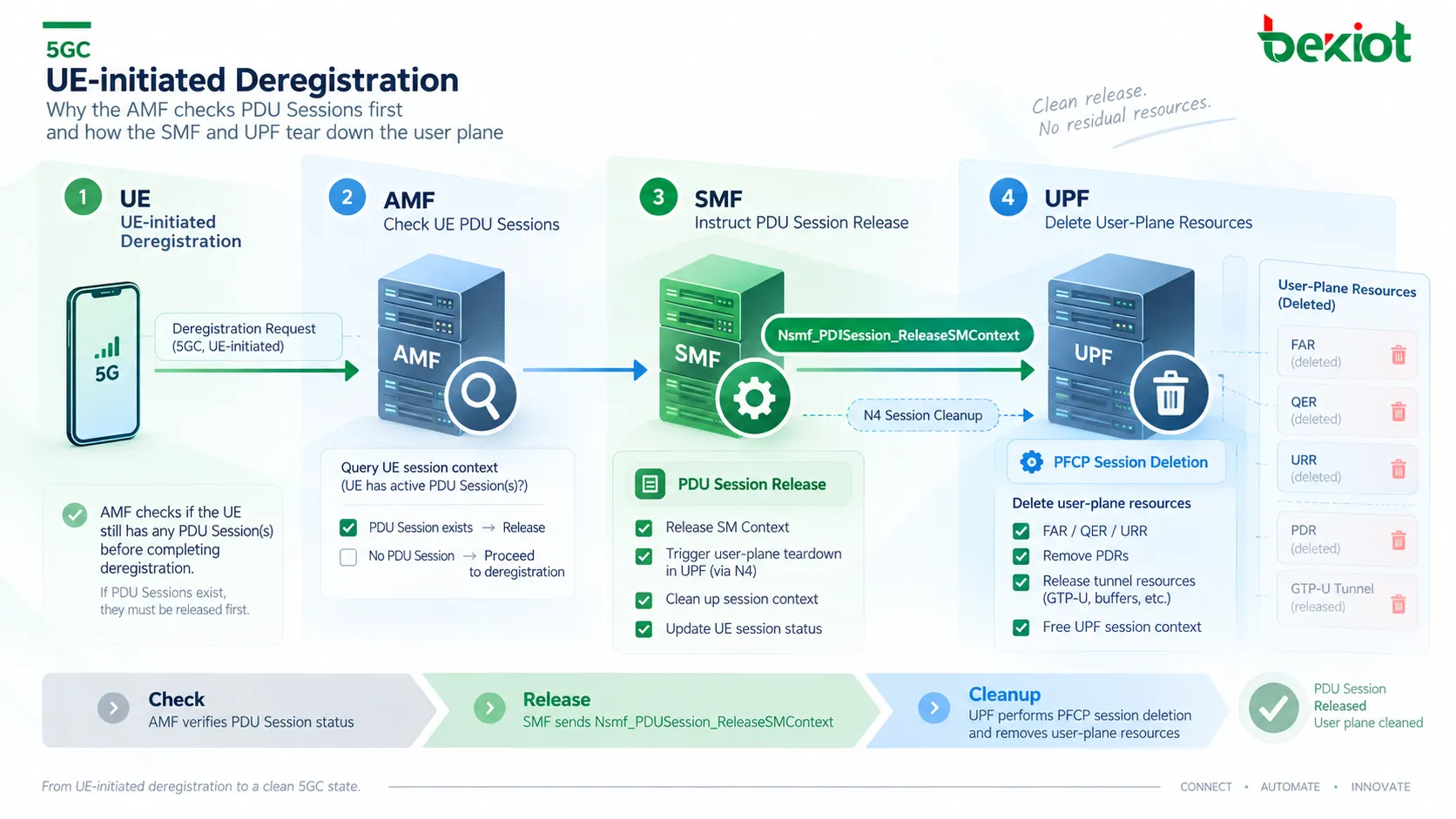

UE、AMF、SMF與UPF在去註冊及使用者平面資源釋放中的角色示意圖。
UE、AMF、SMF與UPF在去註冊及使用者平面資源釋放中的角色示意圖

依條件移除失效的策略與UDM關聯

若適用動態PCC,SMF會結束SM策略關聯,並視情況使用Npcf_SMPolicyControl_Delete。對於SMF為該UE及相關DNN和S-NSSAI處理的最後一個PDU工作階段,SMF會使用Nudm_SDM_Unsubscribe與Nudm_UECM_Deregistration,移除UDM內相應的訂閱與SMF註冊關聯。

當UE不再透過任何接取註冊時,AMF會結束既有的AM策略與UE策略關聯。不能據此推斷必須清除訂戶設定檔、歷史計費資料或所有UDM紀錄。其他仍有效的已註冊接取或工作階段可能還需要上下文,應核對具體關聯及範圍。

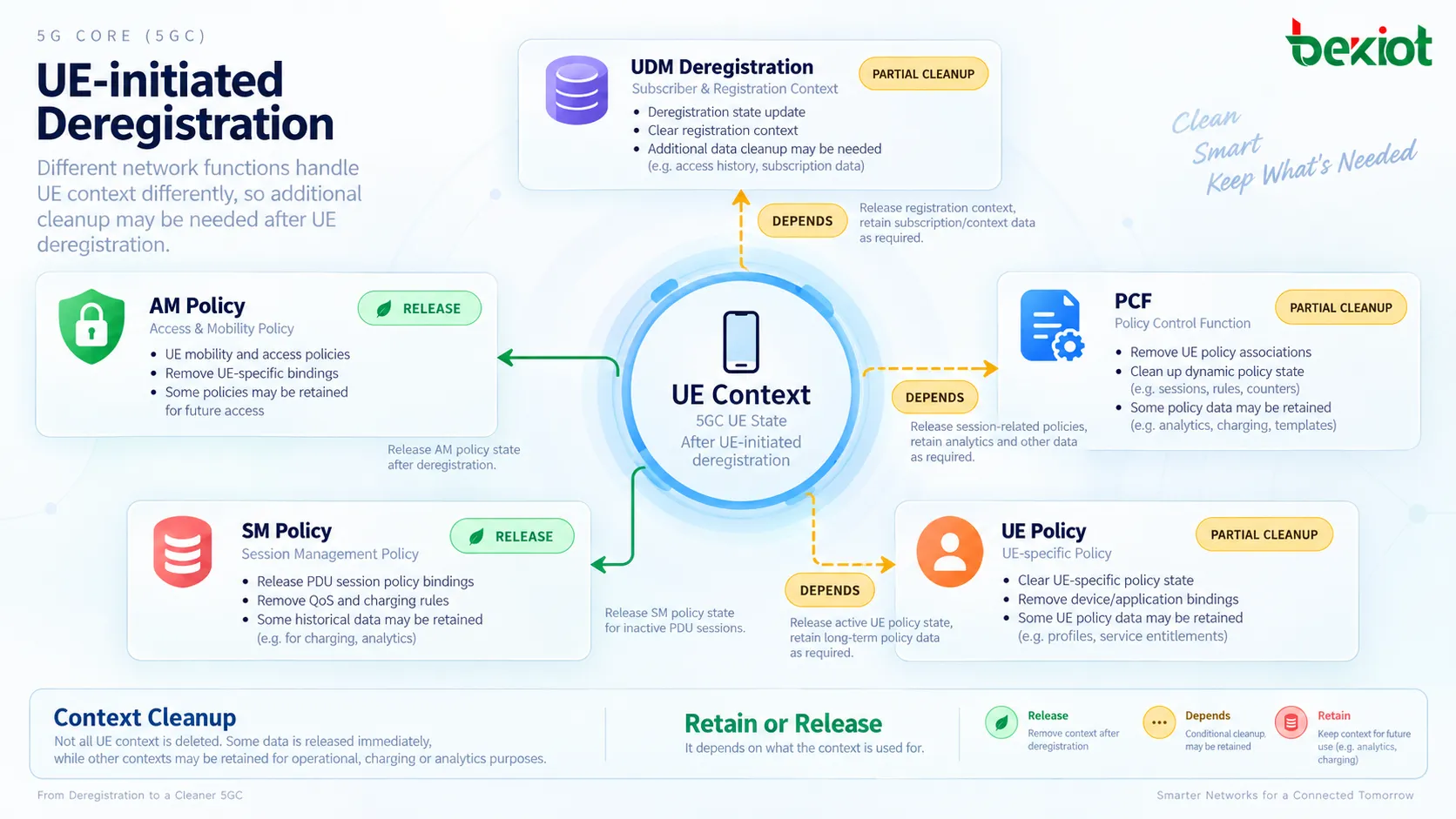

以UE上下文為中心,彙整AM策略、SM策略、UE策略、PCF與UDM清理的圖表。
以UE上下文為中心,彙整AM策略、SM策略、UE策略、PCF與UDM清理的圖表

正常去註冊與關機的結束方式不同

在Normal de-registration中,UE預期收到Deregistration Accept,並使用T3521監督回應。若計時器到期,需依規定執行重試與失敗處理。AMF也會在相關N2信令連線存在時,釋放與NG-RAN或適用非3GPP接取閘道之間的連線。

在Switch off中,AMF不會傳送Deregistration Accept。UE不需等待此確認即可關機。因此,這種情況下沒有回應是預期行為,不能僅據此判定去註冊失敗。

突然斷電或失去涵蓋可能導致請求完全未抵達AMF。網路會透過可達性監督,以及在符合條件時的隱式去註冊來處理這類異常消失。這不同於成功收到關機請求的情況。

實用信令追蹤檢查清單

  1. 確認UE至AMF的方向、5G-GUTI、完整性驗證結果、去註冊類型及目標接取。

  2. 在尋找釋放訊息前,先確認受影響的PDU工作階段與N4上下文先前是否存在。

  3. 依UE與工作階段識別資訊,關聯AMF至SMF、SMF至UPF及策略/UDM交易,並檢查回應與保留狀態。

  4. 僅在適用的非關機情況下預期NAS接受回應,並納入接取釋放及使用量回報所造成的條件式順序。

常見問題

關機請求一定能送達嗎?

不一定。突然斷電或失去無線涵蓋可能阻止傳送。未看到請求,並不能證明AMF已經移除註冊狀態。

每次去註冊都會包含PFCP刪除嗎?

不會。若沒有相關的已建立PDU工作階段或N4上下文,就沒有對應的刪除對象。將缺少PFCP訊息判定為故障前,應先調查先前的工作階段狀態。

其他接取可以維持註冊嗎?

可以。去註冊可以只針對一種接取。在預期AM策略或UE策略關聯終止,或所有工作階段狀態移除之前,應先檢查所指示的範圍。

網路發起的去註冊有何不同?

NAS請求由AMF傳向UE;若為隱式去註冊,則沒有此請求。即使部分後端清理步驟重疊,觸發原因與預期回應仍然不同。

相關流程與標準

相反觸發方向的流程,請參閱網路發起的去註冊。若要理解隱式清理前的閒置可達性,請參閱週期性註冊更新。

上述流程依據3GPP TS 23.502第4.2.2.3.2節、3GPP TS 24.501第5.5.2.2節及計時器表中的NAS行為,以及3GPP TS 29.244第6.3.4節的PFCP刪除。應使規範版本與支援功能符合正在分析的部署環境。
