SIP工業話機TR069 配置及支援說明

概述

TR-069

TR-069 是由 DSL 論壇開發的 CPE 廣域網路管理協議。它定義了 ACS 自動配置伺服器對 CPE 用戶端設備進行安全自動化配置和集中管理的框架。
TR-069
    圖 1-1 TR-069 圖解設計

適用型號

本文檔適用於門禁設備和話機設備。

目標受眾

本文檔面向需要了解 TR-069 配置、RPC 方法、TR-111 擴展及參數模型的研發和測試人員。

ACS / CPE

ACS 自動配置伺服器

CPE 客戶端設備

話機配置 TR-069

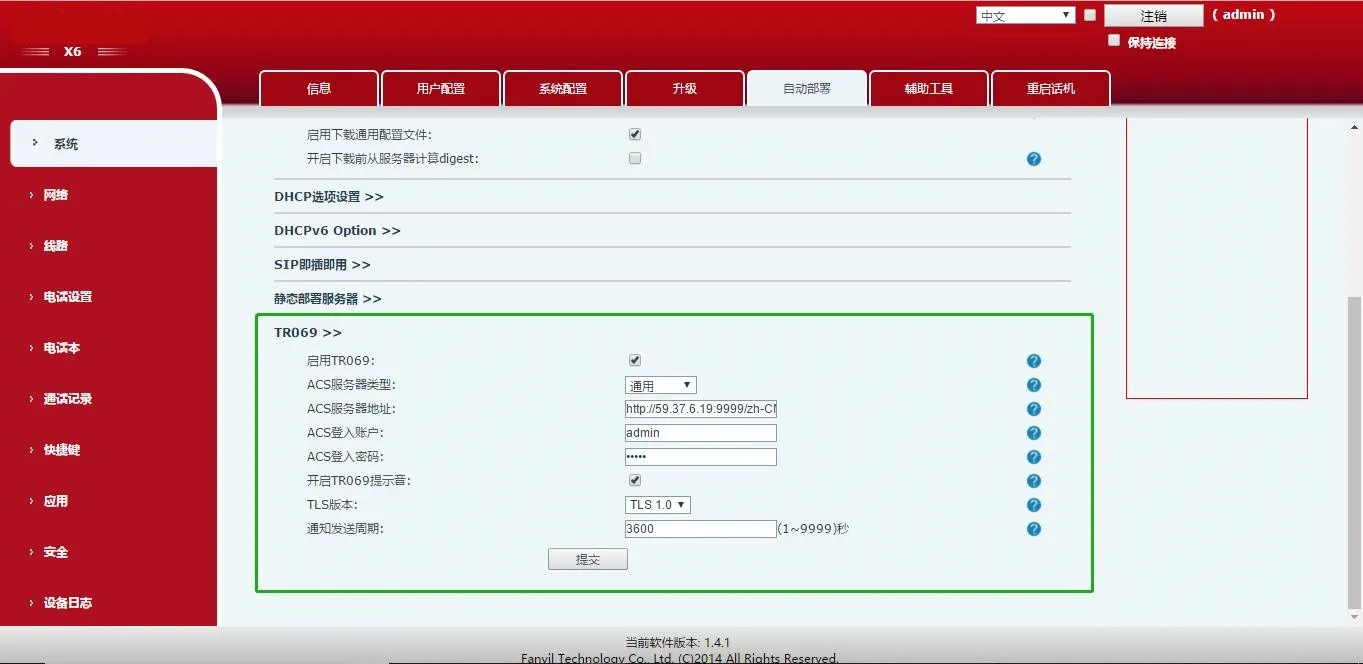

話機預設未啟用 TR-069。使用者可使用管理員權限登入 Web 頁面,進入 系統 → 自動部署 → TR069,並在對應區域配置參數。
TR-069 configuration  圖 2-1

名稱描述
Enable TR069啟用狀態
ACS Server Type配置項
ACS Server Address伺服器位址或URL
ACS Login Account使用者名稱
ACS Login Password密碼
STUN Server AddressSTUN相關參數
Enable STUN啟用狀態

話機支援的 TR-069 RPC 方法

RPC 方法用於 CPE 與 ACS 的雙向通訊,ACS 可透過 RPC 取得、設定、監控和維護設備參數。

RPC節點說明
GetRPCMethodsRPC功能說明
SetParameterValuesRPC功能說明
GetParameterValuesRPC功能說明
GetParameterNamesRPC功能說明
GetParameterAttributesRPC功能說明
SetParameterAttributesRPC功能說明
DownloadRPC功能說明
FactoryResetRPC功能說明
RebootRPC功能說明

支援 TR-111

TR-111 屬於 TR-069 協議族,用於擴展閘道關聯和 NAT 後設備連線請求能力,使 ACS 能夠更好地管理 LAN 側設備。

Device-Gateway Association

TR-111 supports gateway association so that the ACS can identify the gateway used by a LAN-side device.

NAT Connection Request

TR-111 supports UDP/STUN based connection requests for CPE devices located behind NAT gateways.

TR-069 協議的參數模型

網路架構包含 Internet Gateway Device 和 LAN Device 兩類資料模型。參數名稱採用點分層樹狀結構,參數類型基於 SOAP 資料類型。

  1. Internet Gateway Device

  2. LAN Device

  3. Parameter names use a dotted tree hierarchy.

  4. Parameter types are based on SOAP data types.

節點名類型節點說明
InternetGatewayDevice.DeviceInfo.Object設備資訊
InternetGatewayDevice.DeviceInfo.ManufacturerString設備製造商
InternetGatewayDevice.DeviceInfo.ManufacturerOUIString設備製造商
InternetGatewayDevice.DeviceInfo.ModelNameString產品型號
InternetGatewayDevice.DeviceInfo.DescriptionString設備資訊
InternetGatewayDevice.DeviceInfo.ProductClassString產品型號
InternetGatewayDevice.DeviceInfo.SerialNumberString設備資訊
InternetGatewayDevice.DeviceInfo.SoftwareVersionString版本資訊
InternetGatewayDevice.DeviceInfo.HardwareVersionString版本資訊
InternetGatewayDevice.DeviceInfo.SpecVersionString版本資訊
InternetGatewayDevice.DeviceInfo.ProvisioningCodeString配置項
InternetGatewayDevice.DeviceInfo.UpTimeString時間參數
InternetGatewayDevice.DeviceInfo.DeviceLogString設備資訊
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.Object配置項
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.NameString配置項
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.VersionString版本資訊
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.DateString時間參數
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.DescriptionString配置項
InternetGatewayDevice.ManagementServer.Object設備資訊
InternetGatewayDevice.ManagementServer.URLString伺服器位址或URL
InternetGatewayDevice.ManagementServer.UsernameString使用者名稱
InternetGatewayDevice.ManagementServer.PasswordString密碼
InternetGatewayDevice.ManagementServer.PeriodicInformEnableString啟用狀態
InternetGatewayDevice.ManagementServer.PeriodicInformIntervalString時間參數
InternetGatewayDevice.ManagementServer.PeriodicInformTimeString時間參數
InternetGatewayDevice.ManagementServer.ParameterKeyString配置項
InternetGatewayDevice.ManagementServer.ConnectionRequestURLString伺服器位址或URL
InternetGatewayDevice.ManagementServer.ConnectionRequestUsernameString使用者名稱
InternetGatewayDevice.ManagementServer.ConnectionRequestPasswordString密碼
InternetGatewayDevice.ManagementServer.UDPConnectionRequestAddressString伺服器位址或URL
InternetGatewayDevice.ManagementServer.UDPConnectionRequestAddressNotificationLimitString時間參數
InternetGatewayDevice.ManagementServer.STUNEnableStringSTUN相關參數
InternetGatewayDevice.ManagementServer.STUNServerAddressStringSTUN相關參數
InternetGatewayDevice.ManagementServer.STUNServerPortStringSTUN相關參數
InternetGatewayDevice.ManagementServer.STUNUsernameString使用者名稱
InternetGatewayDevice.ManagementServer.STUNPasswordString密碼
InternetGatewayDevice.ManagementServer.STUNMaximumKeepAlivePeriodStringSTUN相關參數
InternetGatewayDevice.ManagementServer.STUNMinimumKeepAlivePeriodStringSTUN相關參數
InternetGatewayDevice.ManagementServer.NATDetectedStringSTUN相關參數
InternetGatewayDevice.ManagementServer.KickURLString伺服器位址或URL
InternetGatewayDevice.ManagementServer.UpgradesManagedString啟用狀態
InternetGatewayDevice.Time.object時間參數
InternetGatewayDevice.Time.EnableBoolean啟用狀態
InternetGatewayDevice.Time.NTPServer1string伺服器位址或URL
InternetGatewayDevice.Time.NTPServer2string伺服器位址或URL
InternetGatewayDevice.Time.CurrentLocalTimedateTime時間參數
InternetGatewayDevice.Time.LocalTimeZoneString時間參數
InternetGatewayDevice.Time.LocalTimeZoneNameString時間參數
InternetGatewayDevice.Layer3Forwarding.Object路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.ForwardNumberOfEntriesUnsigned路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.object路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Enablestring啟用狀態
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Statusstring路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Typestring路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.DestIPAddressstring路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.DestSubnetMaskstring路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.SourceIPAddressstring路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.SourceSubnetMaskstring路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.GatewayIPAddressstring路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.Interfacestring路由或轉送參數
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.ForwardingMetricstring路由或轉送參數
InternetGatewayDevice.UserInterface.Object使用者介面資訊
InternetGatewayDevice.UserInterface.UpgradeAvailableString使用者介面資訊
InternetGatewayDevice.UserInterface.CurrentLanguageString使用者介面資訊
InternetGatewayDevice.Services.VoiceService.{i}.objectVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceServiceNumberOfEntriesunsignedIntVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfileNumberOfEntriesunsignedIntVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.objectVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxProfileCountstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxLineCountstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxSessionCountstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SignalingProtocolsstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.FaxT38booleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.FaxPassThroughbooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.ModemPassThroughbooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.ToneGenerationbooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.RingGenerationbooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.VoiceLineTestsbooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.objectSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.RolestringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.ExtensionsstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TransportsstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.URISchemesstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.EventSubscriptionbooleanSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.ResponseMapbooleanSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSAuthenticationProtocolsstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSAuthenticationKeySizestringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSEncryptionProtocolsstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.objectVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.FastStartbooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.H235AuthenticationMethodsstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.CodecsobjectVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.EntryIdunsignedIntVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.CodecstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.BitRateunsignedIntVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.objectVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.ResetbooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.NumberOfLinesunsignedIntVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.NamestringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SignalingProtocolstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.MaxSessionsunsignedIntVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.DTMFMethodstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.STUNEnablebooleanSTUN相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.STUNServerstringSTUN相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.objectRTP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.LocalPortMinunsignedIntRTP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.LocalPortMaxunsignedIntRTP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.DSCPMarkstringRTP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.TelephoneEventPayloadTypestringRTP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.objectSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.Enableboolean啟用狀態
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.DirectoryNumberstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.StatusstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallStatestringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.RingMuteStatusstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.RingVolumeStatusstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.objectSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthUserNamestring使用者名稱
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthPasswordstring密碼
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.objectVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallWaitingEnablebooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardUnconditionalEnablebooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardUnconditionalNumberstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnBusyEnablebooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnBusyNumberstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnNoAnswerEnablebooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnNoAnswerNumberstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallTransferEnablebooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.MWIEnablebooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.MessageWaitingstringVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.AnonymousCallEnablebooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.DoNotDisturbEnablebooleanVoIP能力或線路參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.objectSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerPortstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerTransportstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerPortstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerTransportstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentDomainstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentPortstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentTransportstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.OrganizationstringSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegisterRetryIntervalstring時間參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegisterExpiresstring時間參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.DSCPMarkunsignedIntSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.VLANIDMarkintSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.EthernetPriorityMarkintSIP相關參數
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.X_ATP_OptionTime.object時間參數
InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.6.SIP.X_ATP_OptionTime.IntervalTimetUnsigned時間參數
InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.6.SIP.X_ATP_OptionTime.OptionsTypeunsignedIntSIP相關參數







目錄
客服 電話
We use cookie to improve your online experience. By continuing to browse this website, you agree to our use of cookie.

Cookies

This Cookie Policy explains how we use cookies and similar technologies when you access or use our website and related services. Please read this Policy together with our Terms and Conditions and Privacy Policy so that you understand how we collect, use, and protect information.

By continuing to access or use our Services, you acknowledge that cookies and similar technologies may be used as described in this Policy, subject to applicable law and your available choices.

Updates to This Cookie Policy

We may revise this Cookie Policy from time to time to reflect changes in legal requirements, technology, or our business practices. When we make updates, the revised version will be posted on this page and will become effective from the date of publication unless otherwise required by law.

Where required, we will provide additional notice or request your consent before applying material changes that affect your rights or choices.

What Are Cookies?

Cookies are small text files placed on your device when you visit a website or interact with certain online content. They help websites recognize your browser or device, remember your preferences, support essential functionality, and improve the overall user experience.

In this Cookie Policy, the term “cookies” also includes similar technologies such as pixels, tags, web beacons, and other tracking tools that perform comparable functions.

Why We Use Cookies

We use cookies to help our website function properly, remember user preferences, enhance website performance, understand how visitors interact with our pages, and support security, analytics, and marketing activities where permitted by law.

We use cookies to keep our website functional, secure, efficient, and more relevant to your browsing experience.

Categories of Cookies We Use

Strictly Necessary Cookies

These cookies are essential for the operation of the website and cannot be disabled in our systems where they are required to provide the service you request. They are typically set in response to actions such as setting privacy preferences, signing in, or submitting forms.

Without these cookies, certain parts of the website may not function correctly.

Functional Cookies

Functional cookies enable enhanced features and personalization, such as remembering your preferences, language settings, or previously selected options. These cookies may be set by us or by third-party providers whose services are integrated into our website.

If you disable these cookies, some services or features may not work as intended.

Performance and Analytics Cookies

These cookies help us understand how visitors use our website by collecting information such as traffic sources, page visits, navigation behavior, and general interaction patterns. In many cases, this information is aggregated and does not directly identify individual users.

We use this information to improve website performance, usability, and content relevance.

Targeting and Advertising Cookies

These cookies may be placed by our advertising or marketing partners to help deliver more relevant ads and measure the effectiveness of campaigns. They may use information about your browsing activity across different websites and services to build a profile of your interests.

These cookies generally do not store directly identifying personal information, but they may identify your browser or device.

First-Party and Third-Party Cookies

Some cookies are set directly by our website and are referred to as first-party cookies. Other cookies are set by third-party services, such as analytics providers, embedded content providers, or advertising partners, and are referred to as third-party cookies.

Third-party providers may use their own cookies in accordance with their own privacy and cookie policies.

Information Collected Through Cookies

Depending on the type of cookie used, the information collected may include browser type, device type, IP address, referring website, pages viewed, time spent on pages, clickstream behavior, and general usage patterns.

This information helps us maintain the website, improve performance, enhance security, and provide a better user experience.

Your Cookie Choices

You can control or disable cookies through your browser settings and, where available, through our cookie consent or preference management tools. Depending on your location, you may also have the right to accept or reject certain categories of cookies, especially those used for analytics, personalization, or advertising purposes.

Please note that blocking or deleting certain cookies may affect the availability, functionality, or performance of some parts of the website.

Restricting cookies may limit certain features and reduce the quality of your experience on the website.

Cookies in Mobile Applications

Where our mobile applications use cookie-like technologies, they are generally limited to those required for core functionality, security, and service delivery. Disabling these essential technologies may affect the normal operation of the application.

We do not use essential mobile application cookies to store unnecessary personal information.

How to Manage Cookies

Most web browsers allow you to manage cookies through browser settings. You can usually choose to block, delete, or receive alerts before cookies are stored. Because browser controls vary, please refer to your browser provider’s support documentation for details on how to manage cookie settings.

Contact Us

If you have any questions about this Cookie Policy or our use of cookies and similar technologies, please contact us at support@becke.cc .
