The Ultimate Compact VoIP-to-Mobile Solution for Voice, SIP Integration, and Automated SMS Workflows

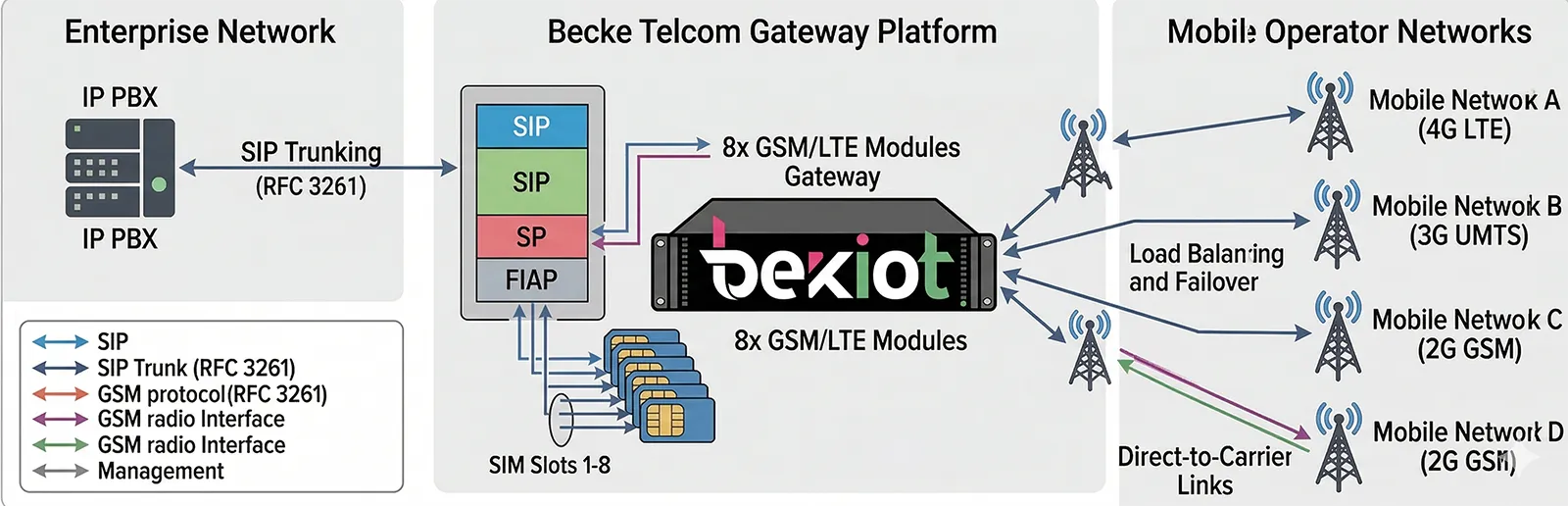

The Becke Telcom 8-Channel GOIP Gateway is precision-engineered for Small and Medium-sized Businesses (SMBs), regional branch offices, and service providers who demand robust mobile voice connectivity without the footprint of high-density carrier equipment. Operating as a critical bridge between IP-based networks and cellular networks (GSM, WCDMA, LTE), this platform integrates 8 distinct mobile channels into your existing Unified Communications (UC) environment.
Whether you need reliable IP PBX mobile trunking, landline failover, high-volume bulk SMS processing, or remote-site deployment, this gateway ensures seamless interoperability with mainstream SIP servers, delivering enterprise-grade call routing and messaging features in a highly manageable, compact chassis.
Featuring 8 independent cellular channels, this gateway supports up to 8 concurrent calls or simultaneous SMS transmissions. It provides the perfect balance for medium-volume traffic, allowing teams to segregate traffic by department, service type, or carrier network, effectively eliminating hardware waste while leaving room for scalable operations.
Built strictly on SIP v2.0 (RFC3261) standards, the gateway ensures flawless integration with leading IP PBX systems, softswitches, and SIP servers including Asterisk, 3CX, FreePBX, Elastix, and BroadSoft. It effortlessly converts SIP trunks to mobile networks, preventing communication silos and accelerating enterprise telephony upgrades.

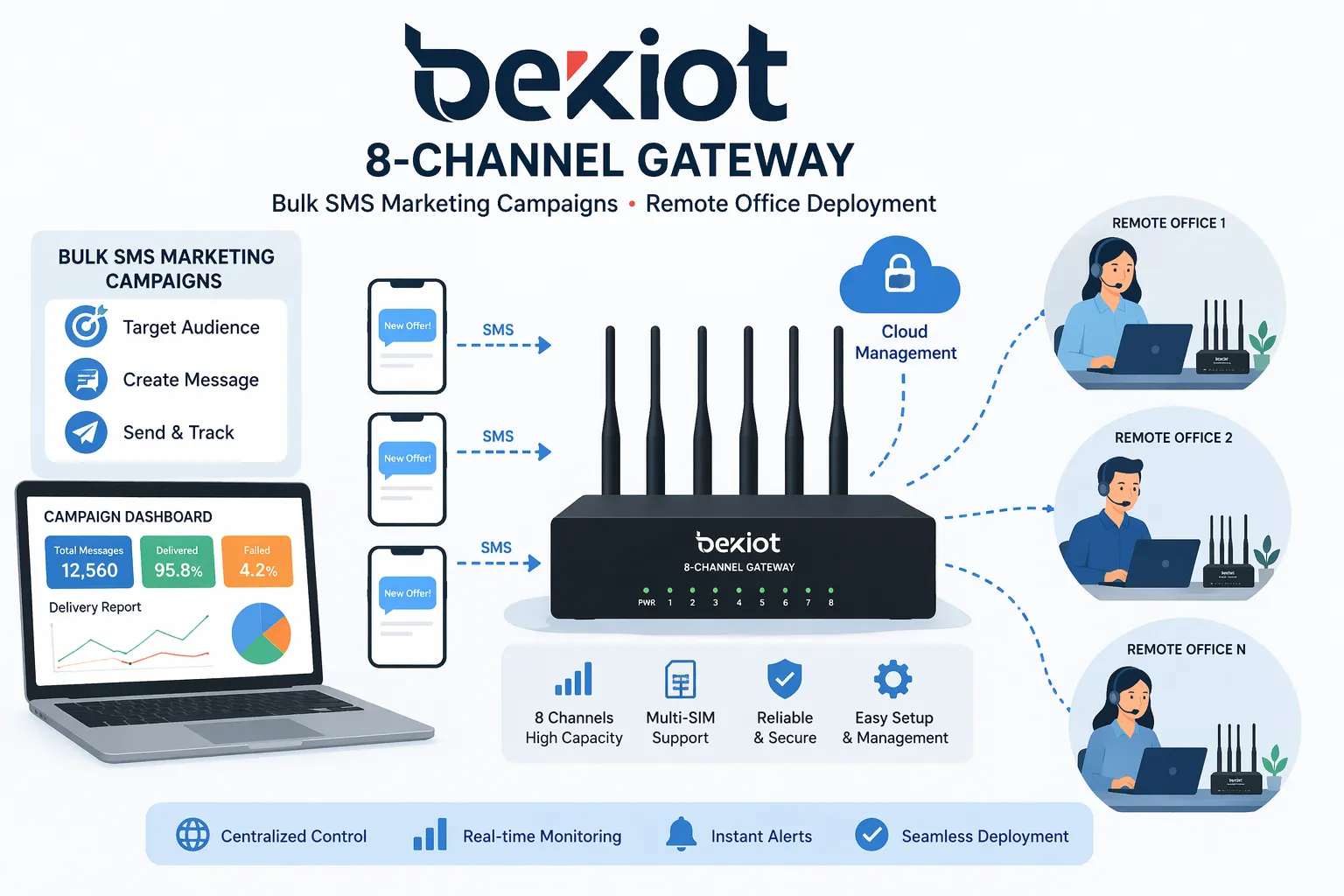

Transform your communication strategy with bi-directional SMS capabilities. The gateway supports HTTP API and SMPP protocols, enabling seamless integration with third-party ERP, CRM, or notification systems. Features include SMS-to-Email, Email-to-SMS, bulk messaging for marketing campaigns, and automated One-Time Password (OTP) delivery for 2FA workflows.
Future-proof your infrastructure with comprehensive network support. Available in various regional modules, the gateway supports legacy GSM/3G while offering full LTE and VoLTE (Voice over LTE) capabilities. This guarantees crystal-clear voice quality, faster call setup times, and strict compliance with global 2G/3G sunset initiatives.
The Becke Telcom 8-Channel Gateway is not just a hardware interface; it is equipped with a sophisticated onboard software suite designed to give IT administrators granular control over their telecom operations:
Connect the gateway directly to your corporate IP PBX. Route calls to mobile phones through the gateway rather than expensive PSTN lines. By utilizing intra-network carrier rates, businesses can drastically reduce mobile-to-mobile telecom expenses.
Fixed-line broadband or SIP trunks can go down. The 8-Channel Gateway acts as an automated survival tool. In the event of an ISP failure, outbound and inbound calls are automatically rerouted through the cellular network, ensuring zero communication blackout.
| Category | Specification / Details |
|---|---|

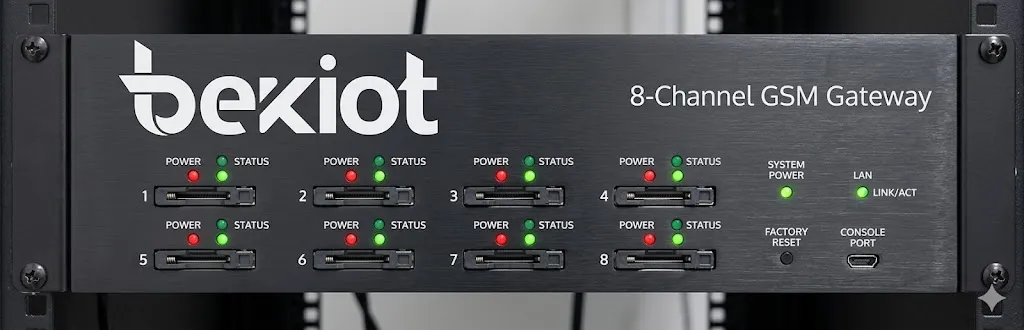

| Interfaces | 8x SIM Card Slots (Standard size), 1x WAN Port (10/100M), 1x LAN Port (10/100M) |
| Network Support | GSM (850/900/1800/1900MHz), WCDMA (3G), LTE (4G) - Regional frequency bands available |
| Voice Processing | G.711A/U, G.723.1, G.729A/B, AMR, G.722; Echo Cancellation (ITU-T G.168), VAD, CNG, PLC |
| SIP & VoIP Protocols | SIP V2.0 (RFC3261), UDP/TCP/TLS, RTP/SRTP, SDP, STUN, Outbound Proxy |
| Management & Admin | Web GUI (HTTP/HTTPS), SSH, SNMP v2, Auto-provisioning (TFTP/HTTP), PCAP Trace, Syslog |
| SMS Capabilities | SMS API (HTTP/HTTPS), SMPP, SMS to Email, Email to SMS, Long SMS support (Multipart) |
| Power & Physical | 12V DC / 2A Power Adapter; Operating Temp: 0°C to 45°C; Desktop or Rack-mountable chassis |
The 8-channel model provides the exact same enterprise-grade software and routing capabilities as the 16-channel model, but is optimized for lower traffic density. It handles up to 8 concurrent calls. It is perfect for SMBs, whereas the 16-channel is better suited for high-volume call centers or larger corporate hubs.
Absolutely. As long as your Cloud PBX provider supports standard SIP Trunking (which almost all do), you can register the Becke Telcom Gateway over the internet to your cloud instance, retaining local mobile routing capabilities while keeping your core infrastructure in the cloud.
The gateway provides standard RESTful HTTP/HTTPS APIs and supports the SMPP protocol. Detailed documentation is provided natively in the Web GUI, allowing developers to easily write scripts in Python, PHP, or Node.js to push/pull SMS messages, query SIM status, and retrieve USSD codes.
Yes. For larger deployments managing multiple gateways across different physical locations, this gateway supports remote SIM management protocols. This allows you to store physical SIM cards in a centralized server room while the gateways operate in distributed remote areas.
