BK-PA060A SIP Amplifier is built for practical IP audio deployment where stable amplification, flexible audio input, and network-based broadcasting need to come together in one compact platform. Designed with a standard 19-inch 2U rack structure and a brushed aluminum alloy front panel, it fits neatly into equipment rooms, control cabinets, broadcast racks, and integrated communication systems that require a clean professional installation.
With an integrated network hardware audio decoding module, 60W built-in high-fidelity power amplifier, and support for SIP and common IP network protocols, this model is positioned for paging, background audio, voice announcements, and zone-based broadcast tasks across schools, factories, office buildings, transport facilities, campuses, and other managed sites. It is especially suitable for projects that need dependable network audio delivery with simple operation and clear expansion logic.
BK-PA060A is designed to simplify deployment by combining network audio decoding and power amplification in one unit. Instead of relying on multiple separate devices for signal reception, decoding, and final speaker drive, it provides a more streamlined architecture for installers and system planners. This makes wiring, rack planning, and maintenance easier in projects where reliability and installation efficiency both matter.
Its support for SIP, TCP/IP, UDP, and IGMP multicast makes it suitable for a wide range of IP public address and paging environments. Whether the system is deployed in a local network or extended across broader managed networks, the amplifier is positioned to support stable audio transmission while keeping the overall system structure clean and scalable.
The unit delivers 16-bit stereo CD-level network audio transmission and is equipped with a built-in high-fidelity amplifier module rated at 60W output. This gives it the ability to support daily announcements, scheduled paging, voice prompts, and general public address tasks with clear sound performance for typical indoor and semi-centralized speaker zones.
For projects that require more refined audio adjustment, BK-PA060A supports treble and bass control through dedicated potentiometer adjustment. This allows integrators or maintenance personnel to fine-tune playback characteristics according to room acoustics, speaker configuration, or the type of audio content being delivered, improving usability in real operating environments.
A practical SIP amplifier should not only connect to the network, but also provide the input flexibility, protection design, and output adaptability needed for everyday site operation.

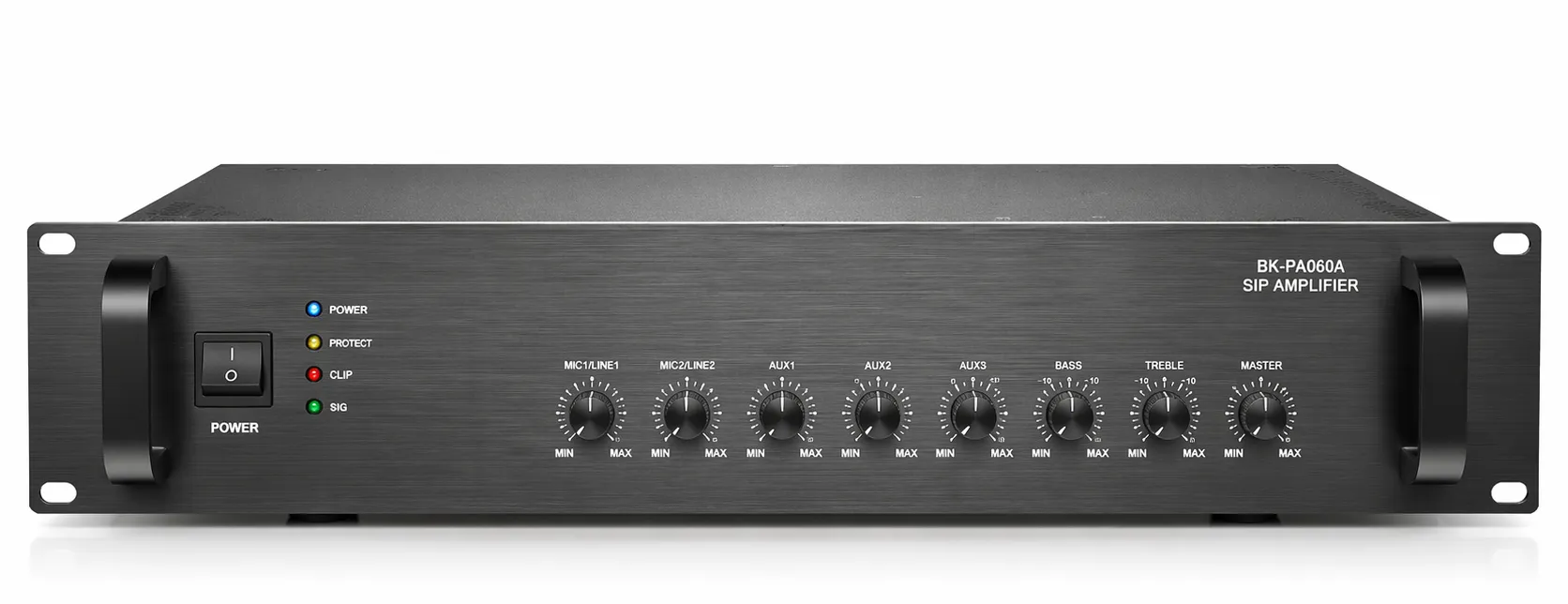

BK-PA060A uses a standard 19-inch 2U rack design, making it easier to integrate into equipment cabinets, broadcast racks, and control room installations. The brushed aluminum alloy front panel gives the device a more professional industrial appearance while also supporting structured installation in projects where product presentation and equipment consistency matter.
This hardware format is especially useful in education, industrial, commercial, and transport environments where multiple communication and broadcast devices are assembled in one cabinet. A rack-oriented structure supports more orderly system deployment, easier servicing, and a better long-term maintenance experience.
BK-PA060A is designed for field applications where more than one audio source may need to be connected. It supports one RCA mixed output, two 6.3 mm microphone inputs, and three RCA line inputs, allowing the system to work with microphones, local audio players, control-room audio sources, and other auxiliary signal paths in a practical way.
Microphone 1 includes forced priority override, which is particularly useful when urgent voice announcements need to interrupt lower-priority audio. Each input can be managed with independent volume adjustment, making the amplifier more adaptable in projects where operators need both routine broadcast playback and fast manual intervention.

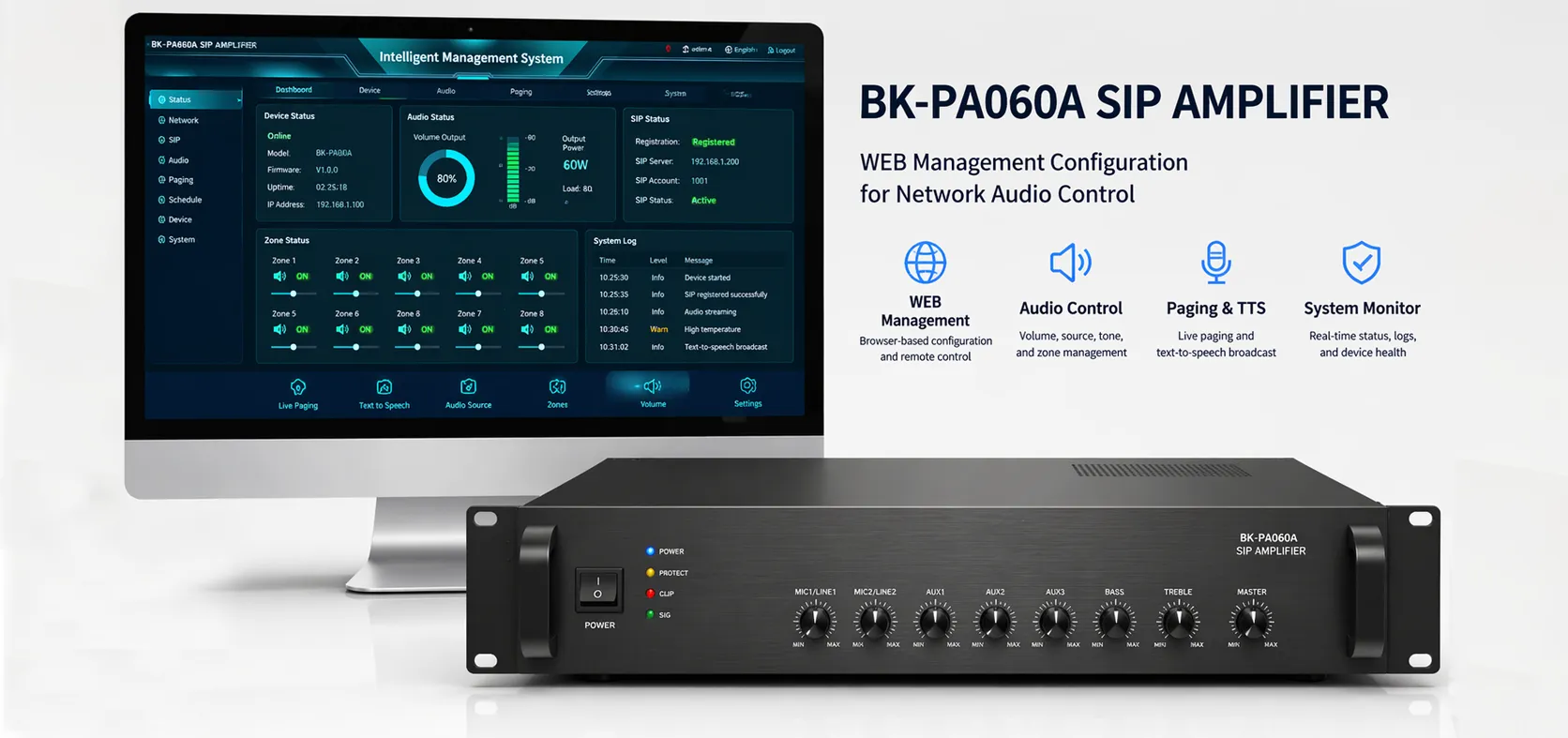

Powered by a high-performance ARM architecture chip, BK-PA060A supports WEB login for parameter modification. This helps reduce configuration complexity and gives installers or administrators a more efficient way to manage system settings during commissioning or maintenance. In multi-device environments, remote web-based adjustment can significantly improve service efficiency.
The amplifier also supports text-to-speech broadcasting, which extends its usefulness beyond traditional live announcements. This function can help with scheduled notices, repetitive service prompts, operational reminders, and other broadcast workflows where automated voice output improves consistency and reduces operator workload.
BK-PA060A supports both constant-voltage and low-impedance speaker connection methods, including 100V output, 70V output, and 4Ω to 8Ω constant-resistance output. This gives system designers more flexibility when matching the amplifier to different speaker layouts, cable distances, and project structures.
In practical terms, this means the amplifier can fit both distributed speaker line systems and localized speaker arrangements without forcing a single output model across every deployment. That flexibility is valuable in schools, office buildings, factories, warehouses, and commercial facilities where broadcast requirements can vary between zones.
To support long-term operational stability, the output stage includes short-circuit, overcurrent, and overload protection, with LED warning indication for fault awareness. These protection mechanisms help reduce risk during abnormal load conditions and give maintenance personnel clearer status feedback during troubleshooting.
The unit also includes self-excitation protection, overheating protection, and power-on or power-off impact protection, again with LED warning support. Together, these measures improve equipment durability and help protect both the amplifier and connected speaker system in demanding operating conditions.

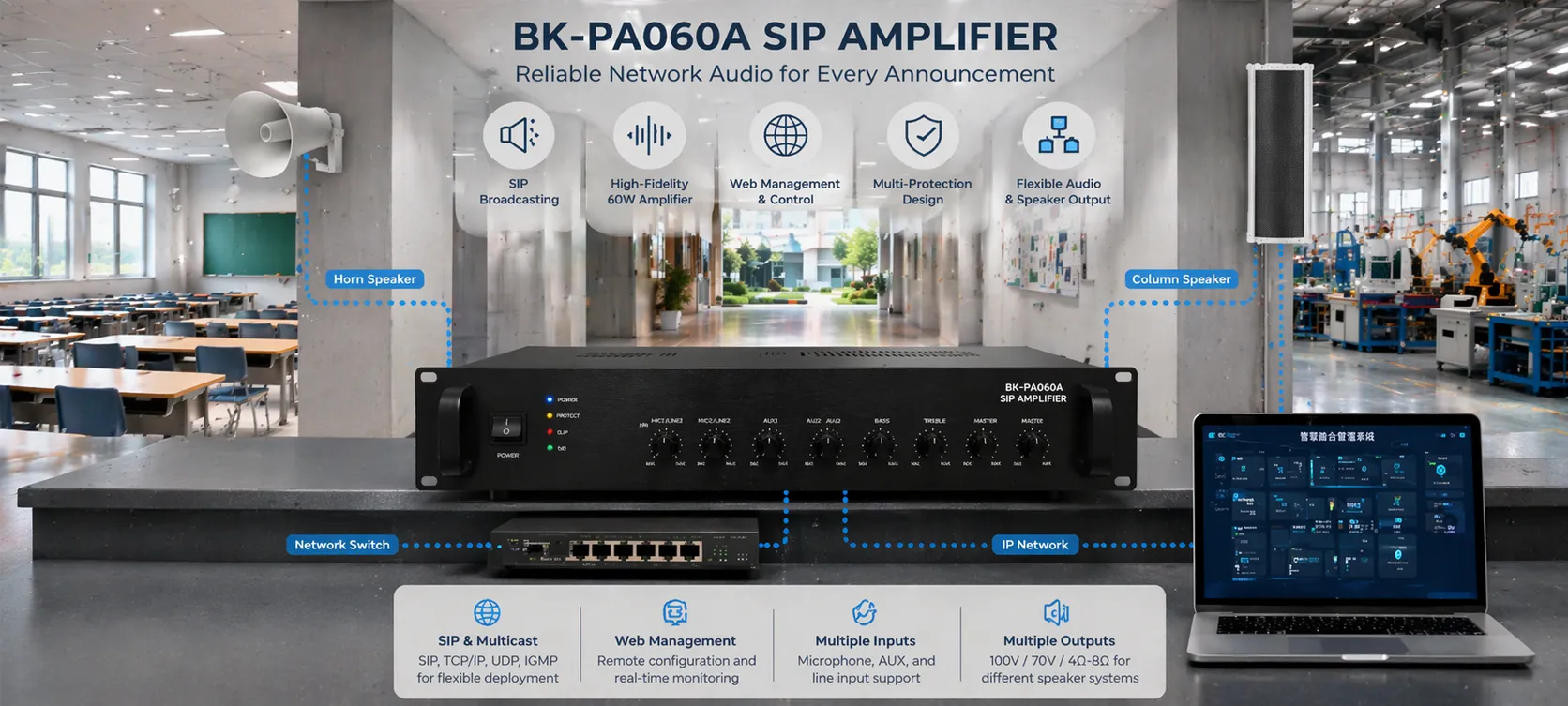

Schools, colleges, dormitory buildings, and training centers often need a combination of scheduled bell tones, routine announcements, emergency notices, and localized manual paging. BK-PA060A fits these needs well by combining network audio reception, microphone access, text-to-speech capability, and flexible speaker output in one compact rack-mounted device.
Its support for network protocols and web-based configuration also makes it suitable for centralized education projects where broadcast devices are managed from a main equipment room or control center. This helps create a more structured and maintainable campus audio architecture.
In industrial sites, audio systems are often used for shift notices, production reminders, safety instructions, area paging, and operational alerts. BK-PA060A is well positioned for these environments because it supports both network-based audio delivery and direct microphone intervention, allowing facilities to combine automatic playback with manual voice communication when needed.
Its protection mechanisms and rack-oriented structure also support more stable deployment in technical rooms and industrial control areas. For factories and warehouses that need dependable day-to-day broadcast support, the amplifier offers a practical balance of functionality and deployment simplicity.
Office buildings, retail sites, hotels, and service facilities often require background announcements, public notices, and voice paging across different functional areas. BK-PA060A can be used as part of a distributed SIP public address architecture where network audio, microphone input, and speaker line output need to be managed efficiently.
Its support for 100V, 70V, and low-impedance output allows it to adapt to different speaker topologies, making it a useful choice for commercial projects that combine long cable runs, multiple rooms, and mixed installation conditions.
Transport hubs, utility rooms, public service buildings, and managed infrastructure facilities often need structured broadcast devices that can be integrated into network-based communication systems. BK-PA060A supports this requirement with IP audio protocol compatibility, web management, and the ability to combine routine broadcasting with live announcement functions.
For these projects, the amplifier’s value comes not only from power output, but from its role as an integrated network audio endpoint that can be installed neatly, managed efficiently, and matched to different speaker circuit strategies.
BK-PA060A stands out because it brings together several deployment-focused strengths in a single device: SIP-based network audio access, 60W amplification, mixed input support, text-to-speech capability, web configuration, flexible output matching, and multiple protection mechanisms. This combination makes it more than just a simple amplifier. It becomes a practical building block for modern paging and public address systems.
For system designers and project buyers, the advantage is clear: fewer separate devices, more structured installation, and better alignment with real site requirements. In projects where audio delivery, announcement flexibility, and network integration all matter, BK-PA060A offers a strong balance of functionality, usability, and engineering value.
BK-PA060A is best suited for SIP paging, public address, and network broadcast projects in schools, factories, warehouses, office buildings, hotels, transport sites, and other managed facilities that need integrated audio reception and amplifier output in one device.
Yes. It supports two 6.3 mm microphone inputs and three RCA line inputs, along with one RCA mixed output. This makes it suitable for systems that combine local microphones, playback devices, and centralized audio sources.
Yes. It supports 100V and 70V constant-voltage output as well as 4Ω to 8Ω constant-resistance output. This allows it to work with different speaker line designs and project installation requirements.
Its main operational advantages include WEB-based parameter configuration, text-to-speech broadcasting, microphone priority override, independent volume adjustment, tone control, and multiple LED-supported protection functions for safer and more efficient daily use.
