防爆電話如何與無線電系統互通?

防爆電話通過 SIP、RoIP 和調度控制接入無線電系統。集成效果取決於 PTT 時序、模擬接口、危險區域邊界、故障韌性及投運檢查。

貝克電信

防爆電話如何與無線電系統互通?

防爆電話在危險區域提供固定呼叫點,手持和車載無線電臺則隨現場團隊移動。兩者可以通過兼容的電話平臺、RoIP 網關和無線電接口通信。這種集成連接語音和發射控制,不會把電話變成無線電臺,也不會將其 Ex 認證範圍擴大到其他設備。

電話通信與無線電通信有哪些差異?

SIP 電話通常通過 PBX 或調度服務器建立全雙工通話,語音由 RTP 傳輸。無線電用戶通常共用一個信道或通話組,按下 PTT 發射,鬆開後接收。部分無線電系統還支持其他模式,因此應確認實際業務,不能把所有 DMR、P25 或 TETRA 呼叫視為相同。

集成系統必須將電話呼叫目的地映射到無線電資源,並協調講話方向。在控制電臺接口上,PTT 請求發射;COR、COS 或其他接收檢測信號可以表示正在接收的通信。這些信號及其電氣特性取決於電臺和網關。

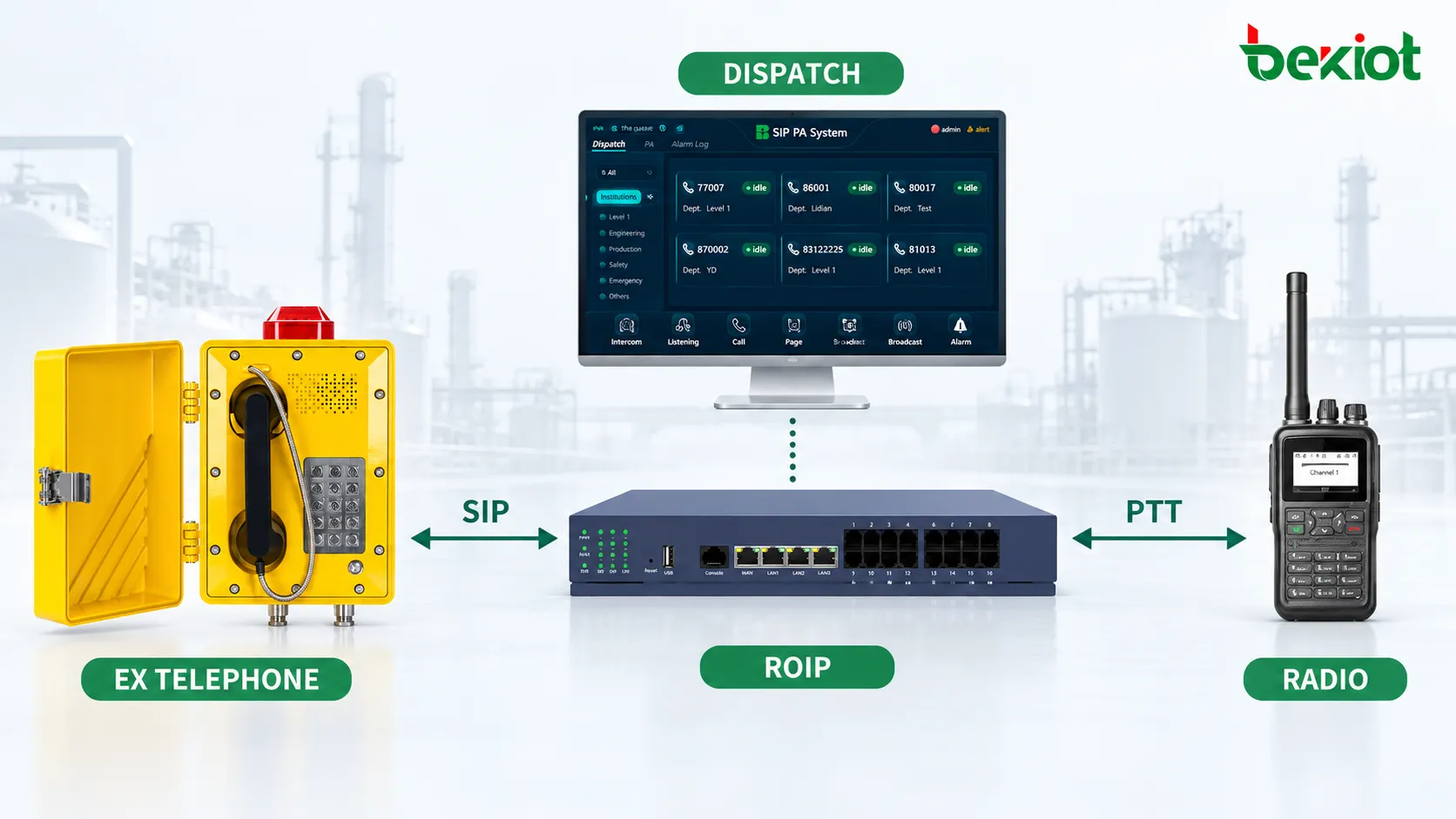

以 SIP 和 PTT 箭頭連接 Ex 電話、RoIP 網關、調度屏幕和電臺的概念示意圖
SIP 與 PTT 橋接概念圖

選擇直接接入或由調度員控制

將電話目的地映射到無線電資源

在具備相應 SIP 路由支持時,一個分機號可以代表網關的某個無線電信道。例如,壓縮機房電話可通過固定目的地呼叫維修組。PBX、網關或集成層必須提供所需路由與 PTT 行為;僅支持 SIP 並不能保證這兩項功能。

由調度員在需要時連接兩個系統

現場電話也可以先呼叫調度員,再由調度員選擇合適的維修、安保或應急無線電資源。必要時,可通過臨時橋接讓來電者加入。這樣,操作員能夠控制哪些內容進入共享無線電信道,避免不必要的永久橋接持續佔用資源。

位置標籤和信道名稱是需要配置的平臺功能。可靠的分機與位置映射能夠識別固定來電點,但應與安裝記錄核對,不能僅憑來電顯示推定位置正確。

梳理音頻與控制路徑

在常見的控制電臺方案中,電話 RTP 經 IP 網絡和電話平臺到達 RoIP 網關。網關向電臺提供兼容的音頻與 PTT 控制,再由該電臺執行射頻發射。接收到的無線電音頻通過網關返回電話;如系統支持,還會使用接收狀態。

這是音頻與控制層面的互通,並非自動轉換 DMR、P25 或 TETRA 空中接口。通話組身份、消息、加密及原生數字信令需要另行支持的接口。音頻橋接不會保留全部無線電元數據,也不能保證端到端加密。

  • 確認控制電臺的準確型號、獲准使用的附件接口,以及信道或通話組的運行方式。

  • 核實音頻接線、電平、阻抗和隔離要求,包括接口是 2 線還是 4 線。

  • 檢查 PTT 極性與電氣限值、接收檢測行為,以及控制接線斷開時的響應。

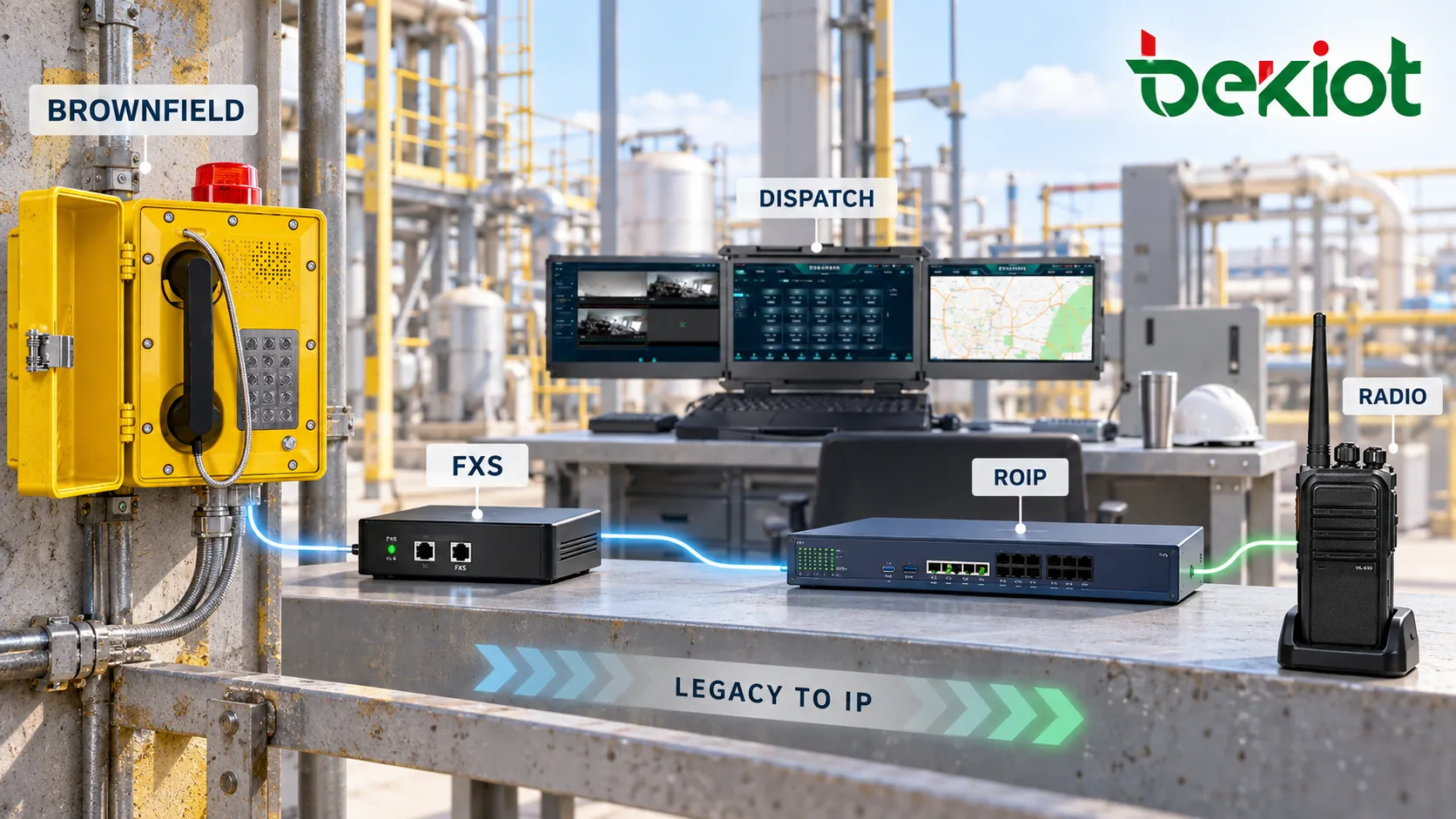

舊式電話通過 FXS 設備連接調度與 RoIP 設備,旁邊放有電臺的示意圖
採用 FXS 和 RoIP 設備改造現有系統的示意圖

將全雙工語音適配為 PTT 操作

明確誰可以觸發電臺發射、接收過程中如何處理,以及何時結束發射。調度員 PTT 是一種方式。電話按鍵、DTMF 或集成命令只有在終端及完整系統支持時才是可選方式,並非每部防爆電話都具備的原生能力。

語音活動檢測可以自動觸發 PTT,但水泵、通風和警報聲也可能將其觸發。應在有代表性的噪聲環境下測試閾值。忙碌指示和發射抑制同樣需要系統支持接收狀態與控制邏輯,不能自動避免所有射頻衝突。

調整 PTT 提前時間或音頻緩衝,使首個詞語在發射路徑就緒後才到達電臺。調整釋放延時,在保留最後一個音節的同時避免無謂佔用信道。應使用實際設備驗證快速輪流講話,以及發射請求卡住後的恢復行為。

集成模擬電話時仍須滿足 Ex 要求

現有模擬電話可通過兼容的 FXS 語音網關接入 SIP 或調度平臺,而 RoIP 網關與現有電臺連接。應檢查環路電壓、振鈴、線路長度,以及必要的保護或隔離。FXS 兼容並不能證明設備適合危險區域。

除非設備自身的許可和安裝條件允許,否則普通網關、服務器和控制電臺應放在分類危險區域之外。電話、電源、進線裝置、附件及接線均應保持在認證設計範圍內。本安電路需要規定的關聯設備與系統驗證;普通 FXS 端口不是本安安全柵。改變現場連接前,應核對電話銘牌與證書範圍。

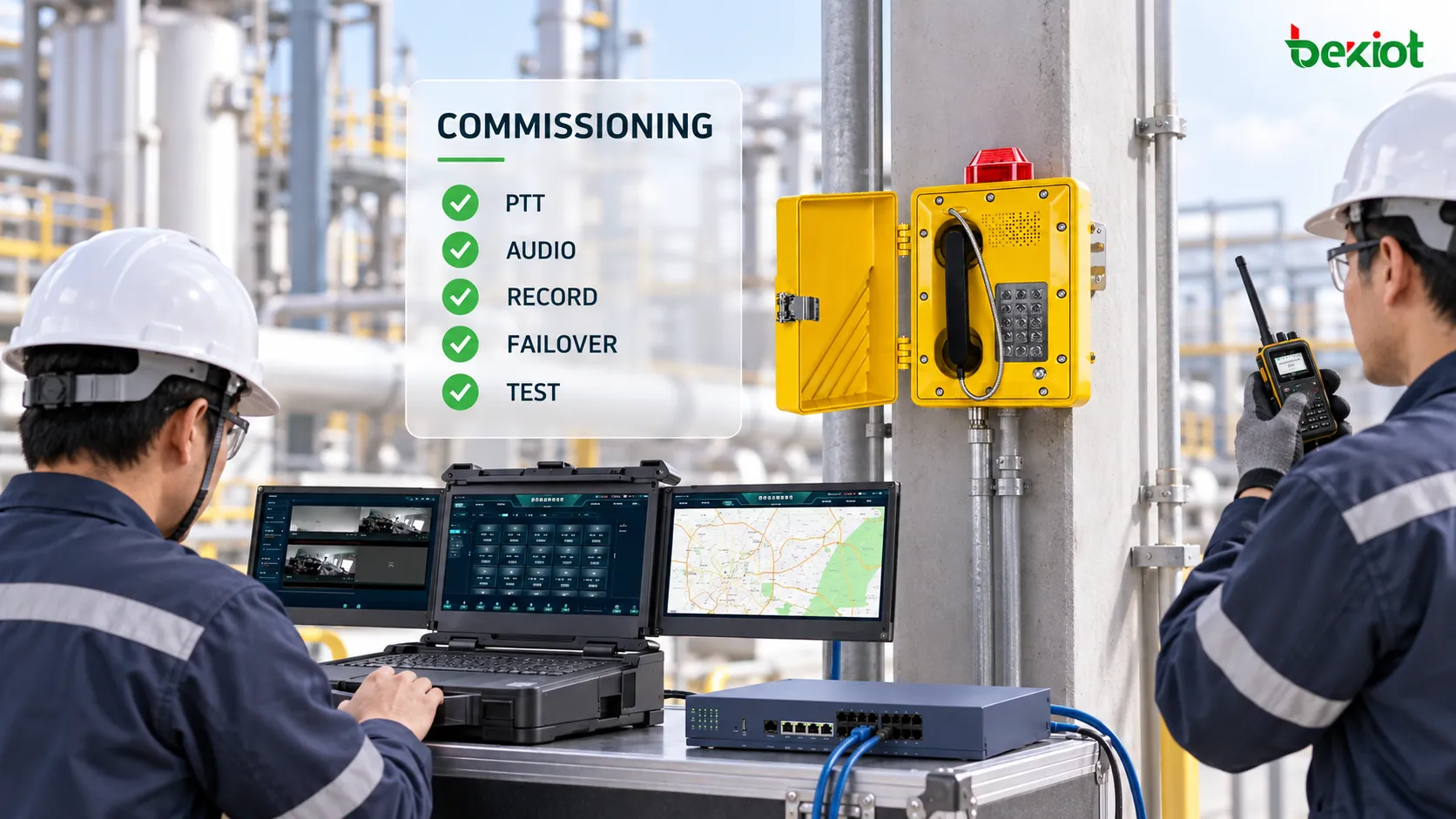

技術人員使用調度控制檯及投運檢查表檢驗電話與電臺的示意圖
涵蓋 PTT、音頻、錄音和故障切換的投運示意圖

控制音質與共同故障點

沿完整路徑評估編解碼兼容性、轉碼、網絡時延、抖動與丟包。G.711 通常兼容性較廣,編解碼時延相對較低;壓縮編解碼則可能以額外處理為代價節省帶寬。選擇受支持的路徑,並在擁塞條件下驗證 QoS;QoS 無法修復不可用的鏈路。分別校準發射和接收電平,避免語音過弱、削波及失真。

識別電源、PBX、調度服務器、IP 鏈路、網關和控制電臺的故障。根據服務連續性要求選擇後備電源、冗餘路徑或備用設備,並保留可用的本地後備通信方式。應急優先級、信道權限和故障切換都屬於系統設計選擇,必須獲得支持並經過測試。

確認錄音同時包含電話和無線電音頻,並在需要時同步事件時間戳。落實訪問與保留規則。共享無線電信道可能讓其他收聽者聽到電話音頻,橋接也可能將無關無線電通信帶入通話。

在現場條件下驗證雙向通信

  • 呼叫預定無線電資源,驗證路由、授權、PTT 操作和可懂度均正確,且首詞不被截斷。

  • 從電臺回傳,驗證接收檢測、返回音頻、忙碌行為及快速切換講話者的表現。

  • 檢查調度員資源選擇、來電位置、臨時橋接釋放及雙向錄音。

  • 測試規定的電源、網絡、服務器與網關故障,以及控制電臺失效;驗證恢復行為及後備操作流程。

  • 在有代表性的噪聲、無線電覆蓋和網絡負載條件下重複可懂度檢查,使用該區域獲准的設備和作業程序。

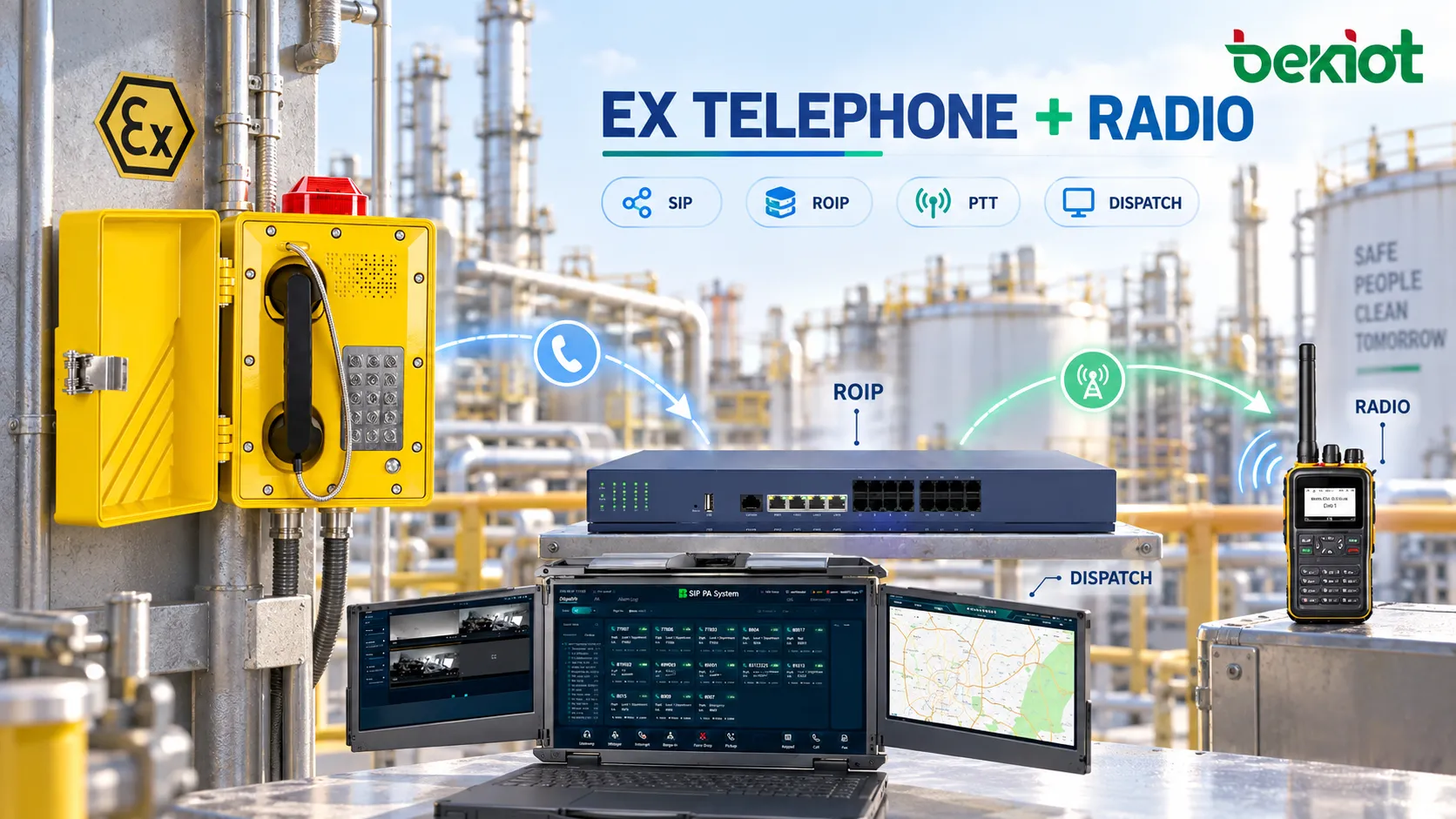

工廠中工業電話、電臺、RoIP 網關與調度屏幕的概念示意圖
整體互通概念圖。每臺現場設備及其安裝方式仍須單獨評估適用性。

常見問題

電話可以直接向 RoIP 網關註冊嗎?

只有網關支持所需註冊服務器或對等連接方案時才可以。許多部署採用 PBX 管理電話,並將呼叫路由到網關資源。具有 SIP 接口不等於網關能夠替代 PBX。

一臺網關可以接入多個無線電組嗎?

可能可以,但須受其支持的信道數、所連接電臺和路由設計限制。基礎音頻接口不會自動選擇任意數字通話組。

無線電用戶可以撥打電話號碼嗎?

這需要系統支持數字輸入、信令及獲授權的電話路由。對於無鍵盤電臺,預設熱線可能更實用。另一個呼叫方向可參閱雙向無線電臺如何撥打電話號碼。

增加網關會改變電話的 Ex 許可嗎?

中央側集成本身不會為現場電話認證或重新認證。任何電源、接線、附件或外殼配置變更都必須保持在證書和安裝要求範圍內,並由具備能力的人員審查。

技術參考

IETF RFC 3261 定義 SIP 會話控制,RFC 3550 定義 RTP 媒體傳輸。兩者均不保證特定網關的無線電控制功能。IECEx 安裝指南解釋設備選擇、證書條件和安裝文件要求。
